HP Pavilion 17-ak008cy Motherboard Replacement

Автор: Andrew Boardman
  • Комментарии: 0
HP Pavilion 17-ak008cy Motherboard Replacement

Сложность

Moderate

Шаги

10

Необходимое время

50 минут - 2 часов

Введение

The motherboard is a very important component to your HP Pavilion 17-ak008cy. like a majority of laptops it controls and regulates the the other components. It is important to handle this part with care to prevent further. This part has many fragile components so its important to careful when replacing this part.

Инструменты

  1. snSLOQyFmuaJNAXA

    • Flip the laptop over so that the underside is facing you.

  2. e4YTkex3MdZTViKp
    e4YTkex3MdZTViKp
    AVQkLYGW4cZvUZjH
    UkpuMQ61JXffNjuh

    • Using your hands, push the two tabs inwards to release the battery.

    • Remove the battery from the device.

  3. RBYHVeMEiSpiXvtT
    RBYHVeMEiSpiXvtT
    2yIJCi5iiSIDCQQI
    AHqgrLWFXklsMVEZ

    • Remove eleven screws from the back panel.

    • Remove the optical drive from the side.

    • Remove the back panel from the device.

  4. asBKAr5cu3LRhR2q

    • Use a Phillips #0 screwdriver to remove the single screw securing the fan to the motherboard.

  5. afaEMvilYtpsYi1N
    afaEMvilYtpsYi1N
    QjS4QQwQtmYYaZ2X

    • Disconnect the fan wire carefully so that the fan is longer connected to the motherboard.

  6. wtpFLHALqJPisWmY
    wtpFLHALqJPisWmY
    32BLbYceoRZVO3eC

    • Remove the fan from the device.

  7. 2u3IbtSVYEIostLv
    2u3IbtSVYEIostLv
    bo21VNpjLKODfRWF

    • Carefully detach the connector above the hard drive.

    • Remove the hard drive from the device.

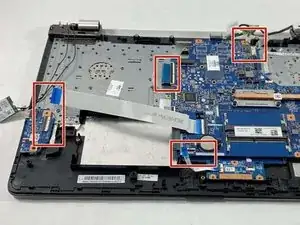

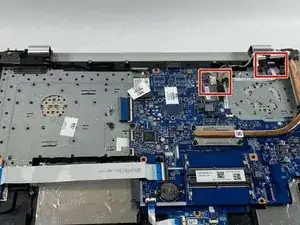

  8. iKHRgmO6wOGXFdGL
    iKHRgmO6wOGXFdGL
    6Ngm54t5BmLPLWxm
    4ikqCoWE4Yu1XPpu

    • Disconnect all of the cables attached to the motherboard.

    • Many of these wires are delicate so be careful when unplugging them.

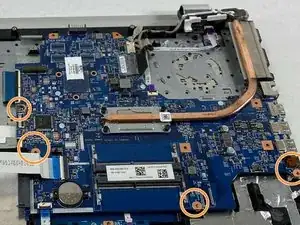

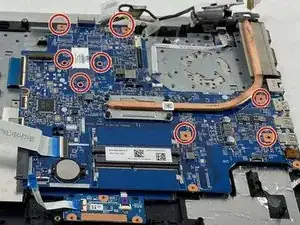

  9. EaGL1UamsAXFXbF1
    EaGL1UamsAXFXbF1
    aDwhOyaAbFQEA2wr

    • Using a Phillips #0 screwdriver, remove eight screws from the motherboard.

    • Using the same screwdriver, remove four screws from the motherboard.

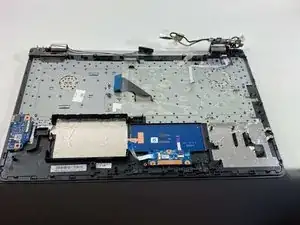

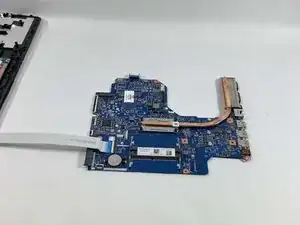

  10. C53IHuqmHk1iI5OG
    C53IHuqmHk1iI5OG
    5aEjlngvijRbDRWK

    • Gently lift and remove the motherboard from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
