HP Pavilion 15-cc023cl Hard Drive Replacement

Сложность

Moderate

Шаги

8

Необходимое время

15 минут

Введение

If your computer will not turn on and you know that this is due to a defective hard drive, this guide will take you through the steps of removing it on the HP-Pavilion 15-cc023cl.

  1. lBKfxQNH2A3IWyNI
    lBKfxQNH2A3IWyNI
    LSphQgJ21SrKdSNC

    • Use a PH000 screwdriver to unscrew the eleven 4mm Phillip head screws located on the back panel.

  2. qKyvTiQATVSB2LuA

    • Using the iFixit opening tool, pry open and remove the back cover of the laptop.

    • Be gentle when applying force to the cover.

  3. NGNgmqb4CXodUj6R
    NGNgmqb4CXodUj6R
    3dQppYVdIOpXcjUd

    • Use a PH000 screwdriver to unscrew the four 3.5mm Philips head screws located on the battery.

  4. df2yXIonepNAuXTA
    df2yXIonepNAuXTA
    NQZ256PEpk4gjMQC

    • Disconnect the port connecting the battery and the motherboard and then remove.

  5. 1PGHKJMBKGJXrP2y

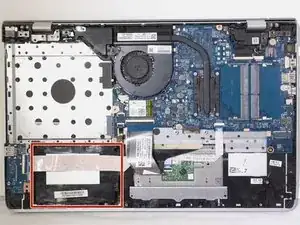

    • Use a spudger to lift the latch that holds the hard drive cable in place.

  6. qSQneMveS1KoFycL

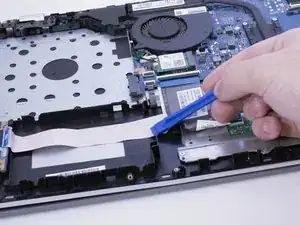

    • Use a plastic opening tool to pry the hard drive out.

  7. cMFL6sGpIYqcGyIh

    • Disconnect the hard drive cable.

  8. W3kNP4PaWWLI2Aua

    • Lift the plastic wedges up on both sides of the hard drive.

    Thank you for the instructions on replacing my hard drive. Mine was a little different but basically I could follow everything. I didn't have the proper tools and I scratched up my laptop a bit but I really don't care. I'm looking for it to work, not be pretty.

    Lindy -

Заключение

To reassemble your device, follow these instructions in reverse order.
