HP Officejet 4630 Paper Tray Replacement

Автор: Tyler Allen
  • Комментарии: 1
HP Officejet 4630 Paper Tray Replacement

Сложность

Easy

Шаги

6

Необходимое время

20 минут

Введение

Paper trays are easy to break but thankfully it is an easy repair with only one tool required.

Инструменты

  1. ERsxOJbF5dN2vLHC

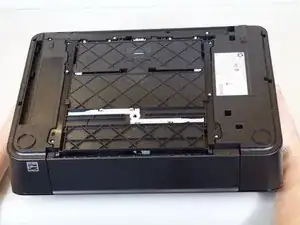

    • Begin by turning your printer upside down.

    • It can be helpful to position an object beneath the printer to keep it level while you work on it.

  2. 3ViJjRdBUdCMHrip

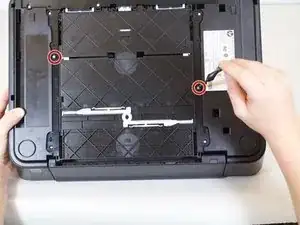

    • Use the T-10 screwdriver to remove the two 11-mm screws.

  3. JrPhCMdXZFCvOZnC

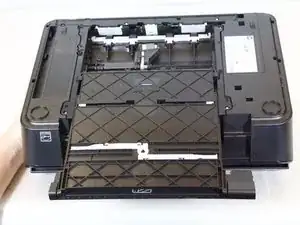

    • Pull the paper tray out until it hits the stops on either side of the tray.

  4. wdE2AKcVbXH4ISYo
    wdE2AKcVbXH4ISYo
    OeolxV4wGh5HduFA
    CPcpACaNXmHsKIhx

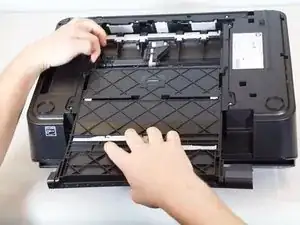

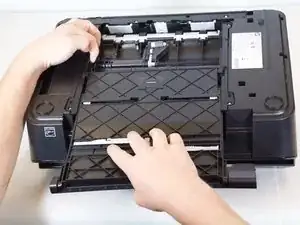

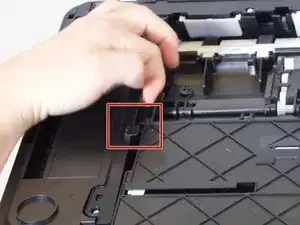

    • Lift up on one side of the black plastic bar with one hand while pulling the paper tray out of the printer with your other hand.

    • The side of the tray should slide away from the printer a little bit.

  5. dJtuLSD6Nby1Img1
    dJtuLSD6Nby1Img1
    GPNOI2vxnt6xsKtO

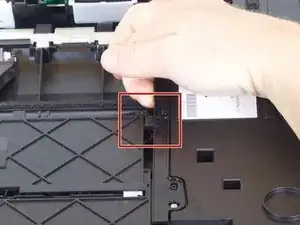

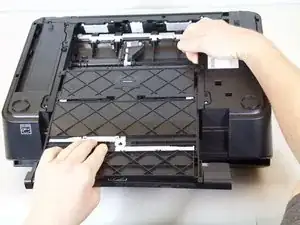

    • Repeat the previous step but for the other side of the tray.

  6. xabO12EyXqELRvSF

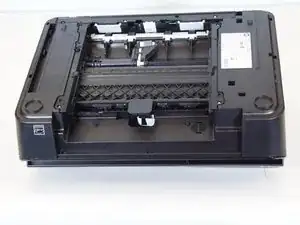

    • The paper tray should now be free to slide away from the printer.

Заключение

To reassemble your device, follow these instructions in reverse order.
