HP LaserJet P1102w Printer Feed Spring Replacement

Автор: Jerome Etten
  • Комментарии: 2
HP LaserJet P1102w Printer Feed Spring Replacement

Сложность

Easy

Шаги

4

Необходимое время

7 - 10 минут

Введение

These steps will show how to replace the paper feeding housing and the spring from the housing.

Инструменты

  1. IWBYVTgWsBPSCEnN
    IWBYVTgWsBPSCEnN
    45VrHiWRPrykRXYA
    bgJBiLxOb2nZ22bl

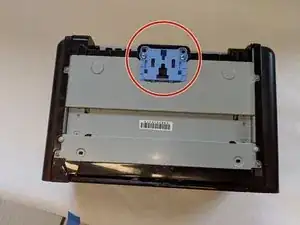

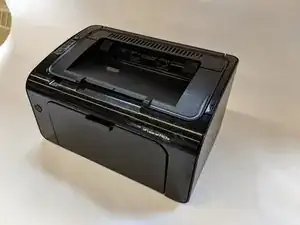

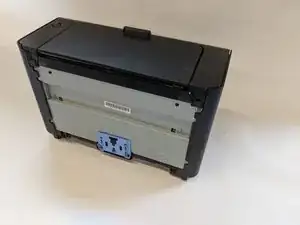

    • Flip printer on its back to expose the paper feeder housing.

  2. ktJxqtnPPxuAaIgu
    ktJxqtnPPxuAaIgu
    FoJqNAx6gCpUAbWM
    vmN3V2ARTIjiWPCQ

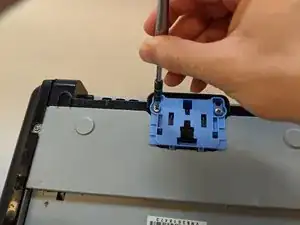

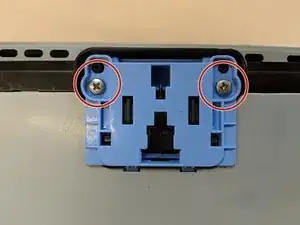

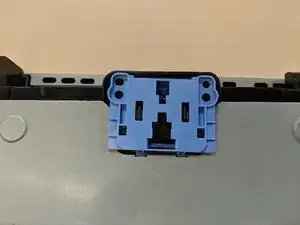

    • Remove both of the #1 Phillip 10 mm screws.

    i think mine was a pair of #2 Philips screws.

    Peter Taffs -

  3. YFl5ZYrKQgGR6fcN
    YFl5ZYrKQgGR6fcN
    nqqXej5ASRBNVKlh
    J4DdePxTESLfANkW

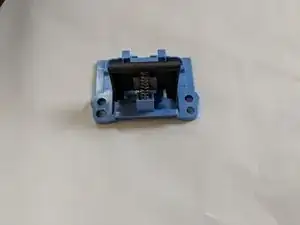

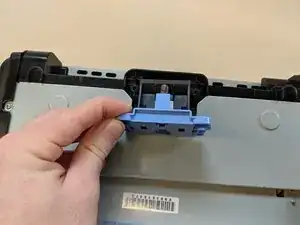

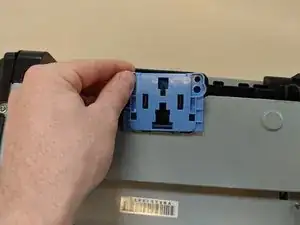

    • Now with both screws out, remove the paper feeding housing from the printer.

  4. cO3Iy6C2WuZYiDiE
    cO3Iy6C2WuZYiDiE
    yFIIeDwWJxkTrTvU
    ahDbXMsLRVZgpVZQ

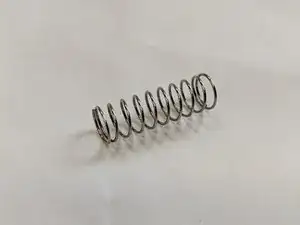

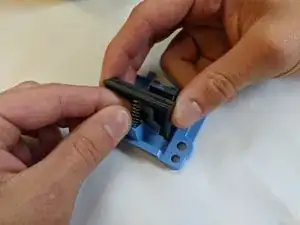

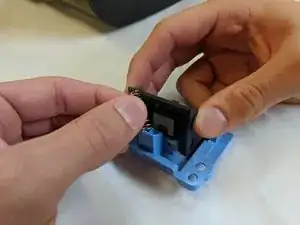

    • Compress and remove spring from paper feed housing.

Заключение

To reassemble your device, follow these instructions in reverse order.
