HP Envy 17-J013CL Fan Module Replacement

Автор: Dean Heller
  • Комментарии: 0
HP Envy 17-J013CL Fan Module Replacement

Сложность

Moderate

Шаги

7

Необходимое время

10 - 15 минут

Введение

This step-by-step guide will help you on your journey disassembling the Fan Module.

  1. PNNG2x1ChvtKJerJ

    • Hold the laptop and push the slider all the way till the battery pops out a little.

  2. XEHFPBoSWKLhQImI
    XEHFPBoSWKLhQImI

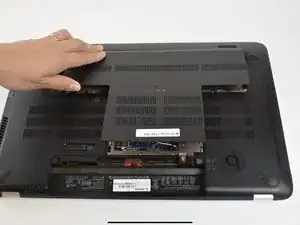

    1qQwVc3CR2OVCEGk

    • Unscrew the screw holding the backplate then pry open the backing.

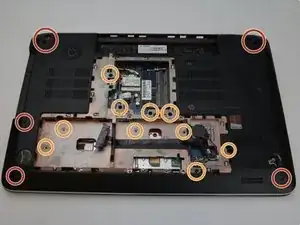

  3. knkuVbWYTvET3wTK
    knkuVbWYTvET3wTK

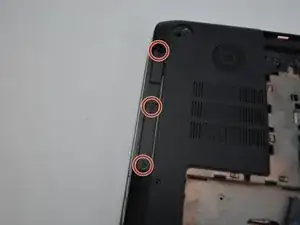

    ujNBWKHhFAdYww1y

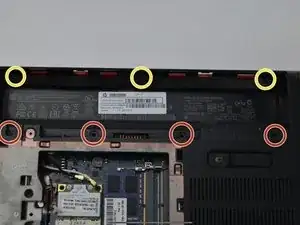

    QVygAyesPgWWrRCH

    • Unscrew the screws holding the chassis in place.

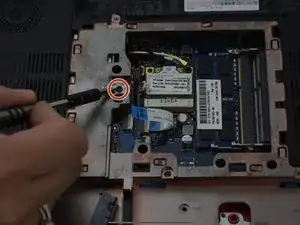

  4. gQi4KhGO6TlCP4Xo

    • Unscrew the Cd-Player and carefully slide the player out to the side.

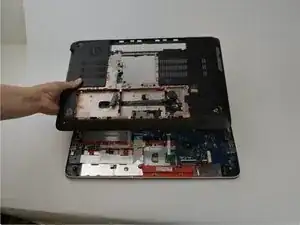

  5. koJKceAuGtIZ2hJT

    • Lift the back plate off the laptop, make sure to remove any wires connected to it.

  6. ObsJcOp1n4RGqyDV

    • Unscrew the fan and unplug the fan from the case.

    • Yellow - Unscrew. Red - Keep

  7. GKgspE5GTIYnHhGa

    • Lift the fan and That’s It!

Заключение

To reassemble your device, follow these instructions in reverse order. (Don’t forget to plug in each wire)
