HP EliteBook 840 G7 Wireless Card Replacement

Автор: James Kegan Roush
  • Комментарии: 6
HP EliteBook 840 G7 Wireless Card Replacement

Сложность

Easy

Шаги

8

Необходимое время

2 минут

Введение

This guide is to instruct you in the proper removal and replacement of the Wireless Card in an HP EliteBook 840 G7. Use this guide if your computers Wireless Card stops working.

  1. ucM3behWmpYyIT6p

    • Turn the laptop on its back.

    Auf den Rücken drehen

    Luis-Oliver Bota -

  2. 6u3HMJobmWWkrrAN

    • Use the Phillips # 1 screwdriver to remove the five 1.2 mm screws from the back cover of the laptop.

    Den Phillips #1 Schraubenzieher benutzen um die fünf schrauben auf der Rückseite des Laptops zu entfernen

    Luis-Oliver Bota -

  3. dDSepiSZuRHfj1gf

    • Remove the back cover to expose the hardware.

    Entferne die Abdeckung um die Hardware zu sehen

    Luis-Oliver Bota -

  4. SRAvgNvW1VZkgkZR
    SRAvgNvW1VZkgkZR
    jncbWlfOTroIdqCo
    vKgxC3guLhwv6Tia

    • Use your Phillips #1 screwdriver and remove the four 1.2 mm screws that secures the battery into place.

    • Remove the connector that connects the battery to the motherboard.

    Entferne die Schrauben die die Batterie in Position halten

    Luis-Oliver Bota -

  5. JK55dFaDSufpEedR
    JK55dFaDSufpEedR
    dNLPsXMQtok3EH3C
    FWAXiRrI65bpbTNW

    • Lift up the battery with you hands or tools.

    Hebe die Batterie mit den Händen oder Werkzeug

    Luis-Oliver Bota -

  6. 1kDpsZxkTUmHZFEJ

    • Detach both wires from the wireless card.

  7. UgMTYXDGUrJfdMsN
    UgMTYXDGUrJfdMsN
    svACGx2VxExcVgLQ

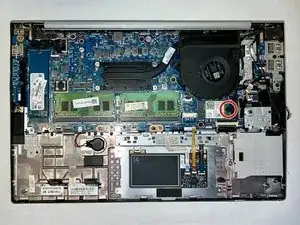

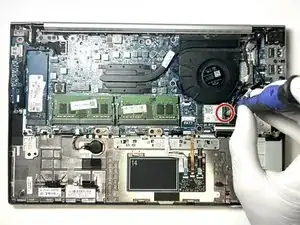

    • Use a Phillips # 1 screwdriver, remove the one 2.5 mm screw securing the wireless card.

  8. ETZ6jyg64kiJEVIC

    • Remove the wireless card

Заключение

To reassemble your device, follow these instructions in reverse order.
