Введение

This cover protects the paper from ink splatter, and lets it guide easily through the gears.

  1. JPbXKYFhk2SObqhf

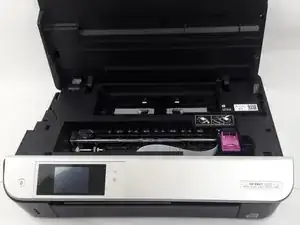

    • Locate the paper cover.

  2. nvwRPeZGLH3lUYYD
    nvwRPeZGLH3lUYYD
    WwPbFmyIPomGqbTQ
    bmGpZHieONRdqvXX

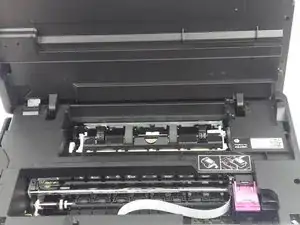

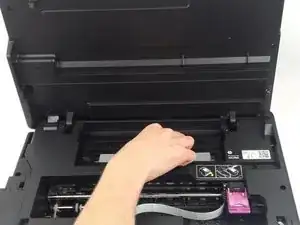

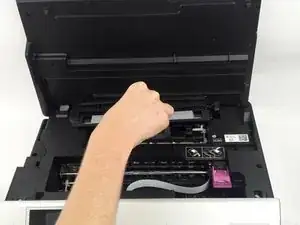

    • Push the two grey connectors together

    • Lift up to remove paper path cover.

Заключение

To reassemble your device, follow these instructions in reverse order.

Elizabeth Surface

Участник c: 27/08/15

1465 Репутация

2 комментариев

The problem, though, is in the precise alignment of the cover when squeezing the connectors. If not done

precisely, the cover will not seat properly and printing cannot be resumed.

marylandcatdad -

do you know where i could buy just the paper path cover?

Qamar Mohamoud -
