HP Compaq Presario V6000 Trackpad Replacement

Сложность

Moderate

Шаги

8

Необходимое время

Нет оценки

Введение

This guide demonstrates how to remove and replace and HP Compaq Presario V6000 trackpad in order to preserve the function of the device.

Инструменты

  1. QVhnxhHdCtXb6pxZ

    • Use the metal spudger to gently remove the plastic plate from the rest of the top panel.

    • Be careful not to break the plastic tabs connecting the two top panels.

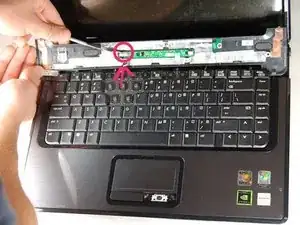

  2. iK56pOVNSj2EPe41

    • Separate the connection of the top piece from the board.

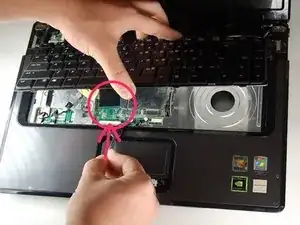

  3. fxTkiZPJNQlVY6UT

    • Remove the connection from the keyboard to its housing.

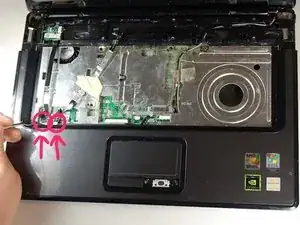

  4. C5KPURaMDgxREGKl

    • Separate the power connections.

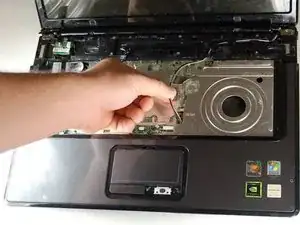

  5. Eih3xIBaSZX3aiFs

    • Unravel the wire.

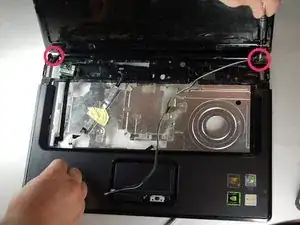

  6. d1HGHtHNTOCQJ2P2

    • Remove the screws connecting the plastic housing to the screen.

    • Use caution when removing the last screen. Do no damage the screen.

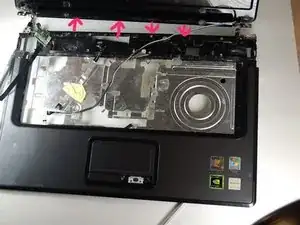

  7. UQml54IcAJQQQn1W

    • Make sure to grip the screen tightly and separate the top and bottom.

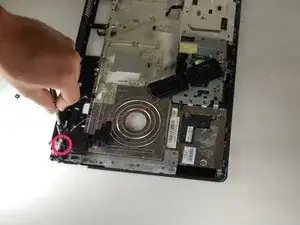

  8. JDOAIqXbidCVkErH
    JDOAIqXbidCVkErH
    Yg5pg5g5VUx224IR

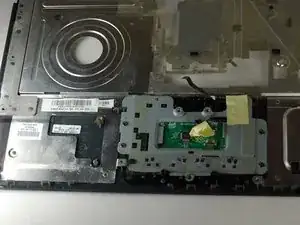

    • Remove the screws that hold the track pad in place.

    • Remove the track pad.

Заключение

To reassemble your device, follow these instructions in reverse order.
