HP Compaq Presario CQ56-110US Repair Wi-Fi Card Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 - 6 минут

Введение

Use this guide to fix wireless connectivity issues by replacing the defective wifi card.

  1. p14VfHldRjK6hTqN
    p14VfHldRjK6hTqN
    H1FXP6xsaQE14MYU
    4EMVb41JjMkPlrHT

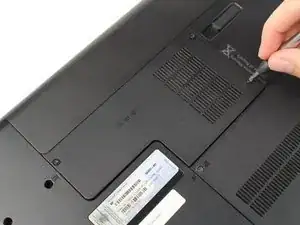

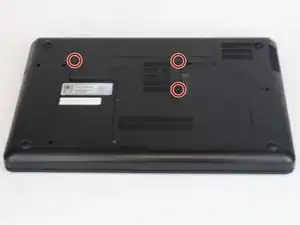

    • Use a Phillips screwdriver with a PH1 bit to loosen the three indicated screws.

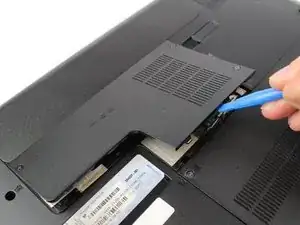

    • The screws do not come free from the panel. They only need to be loosened enough so that the panel can be lifted/pried using a plastic opening tool.

  2. nwucZOIM2irMKi5r
    nwucZOIM2irMKi5r
    adWXWFCaETJSQgDS

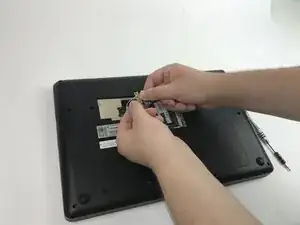

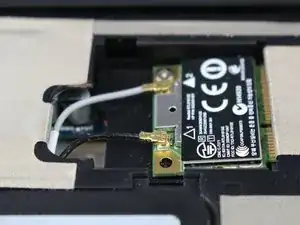

    • Gently pull the black and white cables to disconnect them from the Wi-Fi card.

  3. DFG2Eg1TbBIiCBIo

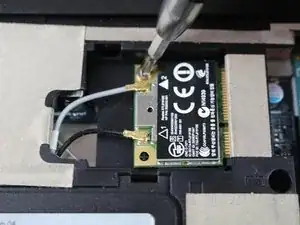

    • Use the same screwdriver to remove the two 3 mm screws holding the card in place.

  4. ncuIYmCc64LjGBgT

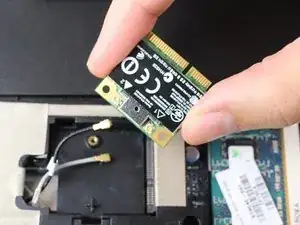

    • Lift the Wi-Fi card to remove it from the slot.

Заключение

To reassemble your device, follow these instructions in reverse order.
