HP 14-ac151nr Coin Cell Battery Replacement

Автор: Jack Coakley
  • Комментарии: 0
HP 14-ac151nr Coin Cell Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

9 - 10 минут

Введение

The coin cell battery is essential to the computer's BIOS as well as its time keeping functions. If yours isn't working properly, you may fix it using these steps.

  1. 3bAyIsuLQWqeDTAD

    • Remove battery by pushing the two buttons inward.

  2. JAe2HV34ZjdQseBi

    • Remove the two rubber feet next to the battery.

  3. ZDeTprXhDTDMZ6Tm

    • Remove all 14 Phillips head #0 screws.

  4. LK2doFFTZUBJRCwU

    • Use a plastic opener tool to pry off the black backplate.

  5. Xa4NAXZUyfG6TYWX

    • Use a spudger and a plastic opener to push back the lock holding the battery in place.

  6. ULoRqaHLdUZoKFpg
    ULoRqaHLdUZoKFpg
    eDtOCwowJFb4gq2b

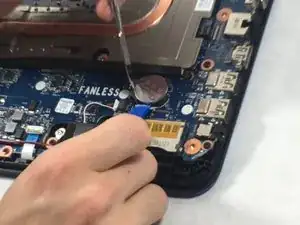

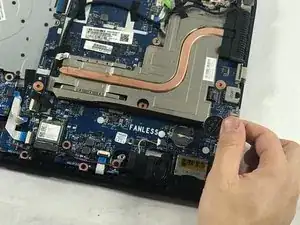

    • Remove the battery by pushing back the lock with the wedge while pulling the battery up.

Заключение

To reassemble your device, follow these instructions in reverse order.
