Prerequisite guide to remove the top board and its camera after removing the flip battery.

Инструменты

  1. 2iUVjc5LXWs6RNJT
    2iUVjc5LXWs6RNJT
    x6QBrseTKL1ijJSQ

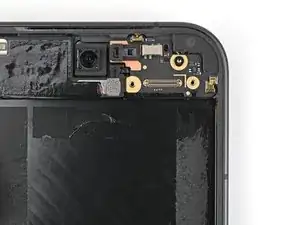

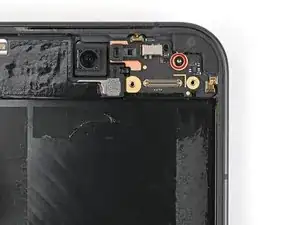

    • Use a Torx Plus 3IP driver to remove the 2.2 mm‑long screw securing the top board.

  2. RIqbkHl3kyoOEDbN
    RIqbkHl3kyoOEDbN
    6jgWZYrYpsgKMsm3
    Idkq5wsPQonOQswF

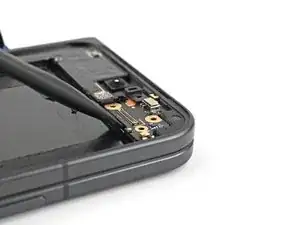

    • Insert the flat end of a spudger under the bottom edge of the top board.

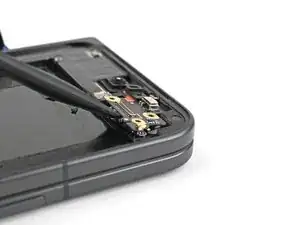

    • Twist the spudger to lift the top board enough to unclip it from the frame.

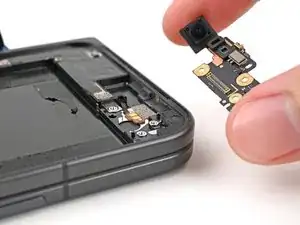

    • Remove the top board.

Заключение

To reassemble your device, follow these instructions in reverse order.
