General Wire Drain Cleaner RSVD 2014 Front Assembly Replacement

Автор: Adam O'Camb
  • Комментарии: 1
General Wire Drain Cleaner RSVD 2014 Front Assembly Replacement

Сложность

Moderate

Шаги

3

Необходимое время

5 - 15 минут

Введение

Use this guide to remove or replace the front assembly on the General Wire Drain Cleaner RSVD 2014.

  1. xb6qGqQ13gEBFswT
    xb6qGqQ13gEBFswT
    aUQWKSYdSKjuJV3q

    • Turn off the drain cleaner and disconnect it from power before beginning any maintenance.

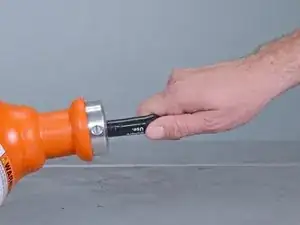

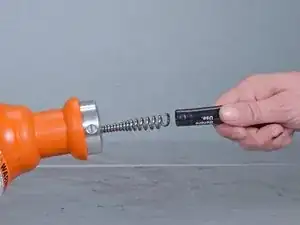

    • Slide the rubber cable cover off of the end of the cable.

  2. jPESvaxuZns4DjUy

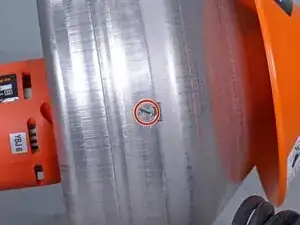

    • Use a flathead screwdriver to loosen the three screws around the edge of the front assembly.

  3. liARZauwCsDDQmtQ
    liARZauwCsDDQmtQ
    pIqDylN3UWDAjpSw
    TegHJpCoPdViF56h

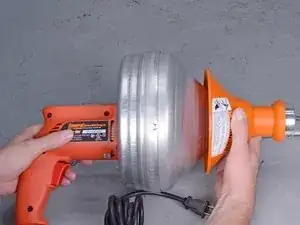

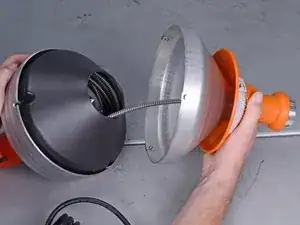

    • Pull the front assembly off of the drain cleaner and slide it over the cable to remove it.

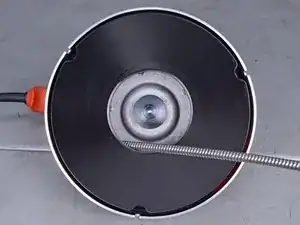

    • During reassembly, make sure the three screws on the front assembly line up with the slots on both the metal cable container back and the plastic cable container.

Заключение

To reassemble your device, follow these instructions in reverse order.
