Gateway NV57H50u RAM Replacement

Автор: Aaron Allison
  • Комментарии: 0
Gateway NV57H50u RAM Replacement

Сложность

Easy

Шаги

5

Необходимое время

2 минут

Введение

Be sure to unplug and power off the device before removing any components. Also, save any work before disassembly.

  1. OCy5nKnuBRlLbRHE
    OCy5nKnuBRlLbRHE
    TlyoNBkXvOVNxPHp
    U4SMdCXqhtbmnZZB

    • Push orange locking tab with spudger right, until battery lifts out of place.

    • Laptop should be unplugged from power supply before removal.

  2. tQE6bFVNC2XK2MMd

    • Unscrew the two 7 mm long #0 Phillips screws.

  3. AhKxpheUGR62WWwG

    • Lift and remove the cover panel via the indentation in the middle of the panel.

  4. LhEXAlCBdjXdenjb

    • Push each of the two silver clips outward to release RAM board.

  5. yBcqZLDUYr2ZfxKq

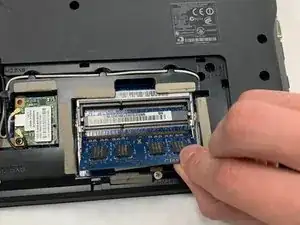

    • Lift RAM board out of its compartment.

Заключение

To reassemble your device, follow these instructions in reverse order.
