Введение

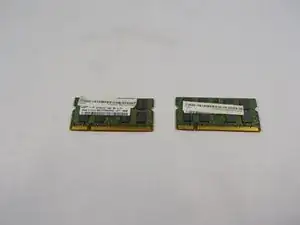

This guide will teach you how to remove your RAM modules. Upgrading RAM is a common practice among users. One thing to note is that if you want to only remove the lower RAM module, you have to remove the top one first.
Инструменты
-
-

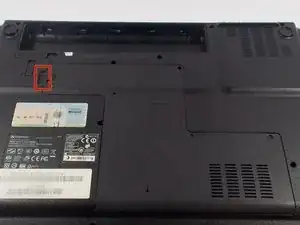

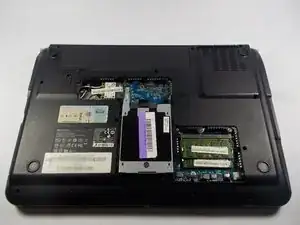

Slide the long slider towards the unlocked lock icon.
-
This slider is spring loaded and may require a little force.
-

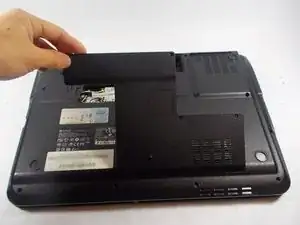

If done correctly, a click will be heard and the battery will be slightly raised.
-
-
-

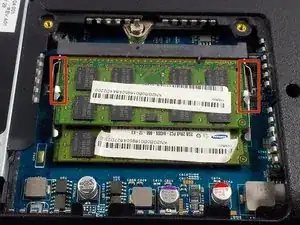

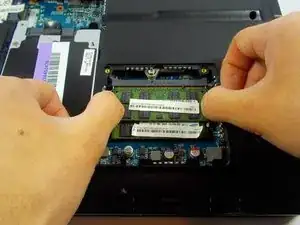

Push the upper RAM module's two pins outwards at the same time.
-

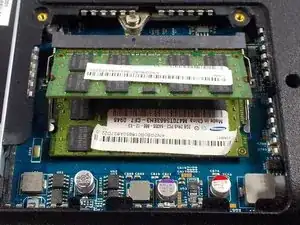

If done correctly, the module should have lifted.
-
-
-

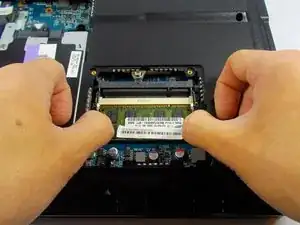

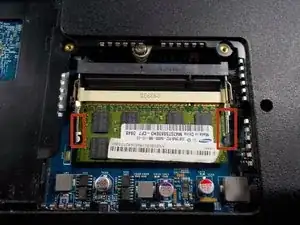

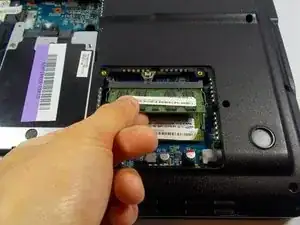

Push the lower RAM module's two pins outwards at the same time.
-

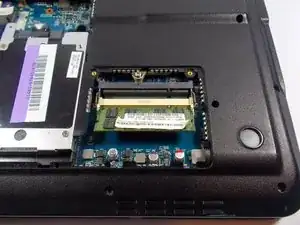

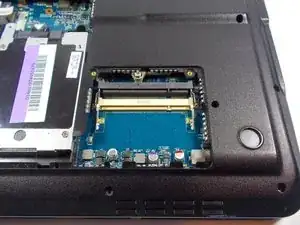

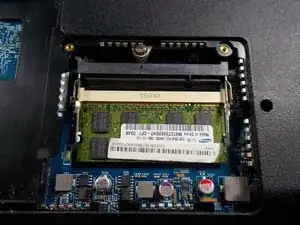

If done correctly, the module should have lifted.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
