Garmin Nuvi 42LM Speaker Replacement

Автор: Elina Zhukov
  • Комментарии: 0
Garmin Nuvi 42LM Speaker Replacement

Сложность

Moderate

Шаги

4

Необходимое время

30 минут

Введение

Before replacing the speaker, visit this device's Troubleshooting Page to determine whether you need to replace the speaker. Follow the steps in this guide if you need to replace the speaker.

  1. CiXOkOcyyQGiWpgU
    CiXOkOcyyQGiWpgU
    FRijYC1NK6blMZau
    lW3RKgSWMJpp512n

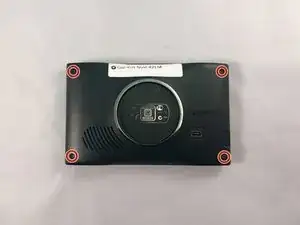

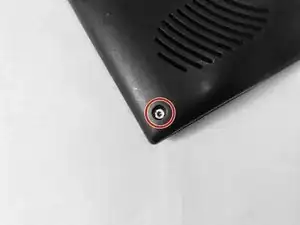

    • Remove the four screws on the back of the GPS using the T5 Torx screwdriver.

  2. mfumQvDivGCOFFo4
    mfumQvDivGCOFFo4
    UXBDEjKWa3xA4WEL
    WTWGnNDZWpi4CJDp

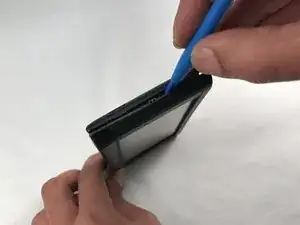

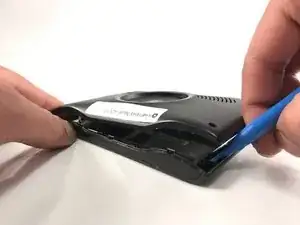

    • Pry the GPS open using a plastic opening tool.

    • When prying open the device, use caution to avoid damaging the motherboard.

  3. KUmmi1xpArd1ADZS
    KUmmi1xpArd1ADZS
    P4HPlbnGQFJvj4Uu

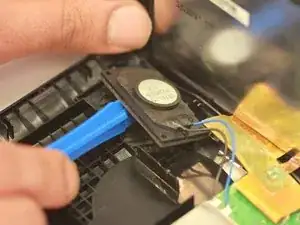

    • Use the plastic opening tool to pry the speaker away from the device.

    • Be gentle, the speakers are connected to the motherboard by blue and black wire.

  4. tvrB2wf1RS3qyJHh
Заключение

To reassemble your device, follow these instructions in reverse order.
