Garmin Nuvi 2455LMT Battery Replacement

Автор: Torrance Williams
  • Комментарии: 0
Garmin Nuvi 2455LMT Battery Replacement

Сложность

Moderate

Шаги

4

Необходимое время

Нет оценки

Введение

This battery is a simple part to replace and will only take about 2-3 minutes. This guide requires a metal spudger and the Torx 4 screwdriver.

  1. MVApoGv2KAmkSdjR
    MVApoGv2KAmkSdjR
    3hiAXkXxf5DAaNBr

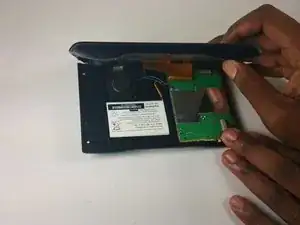

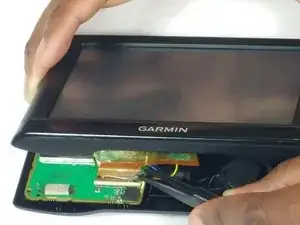

    • Remove the orange band from the motherboard to access screws.

  2. TFACQJILfDIQgEHo
    TFACQJILfDIQgEHo
    yvWxB6jbxAMUcYJm

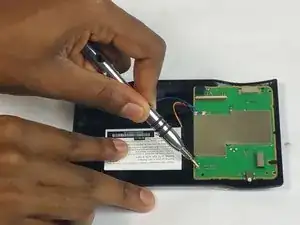

    • Unscrew the motherboard from the device

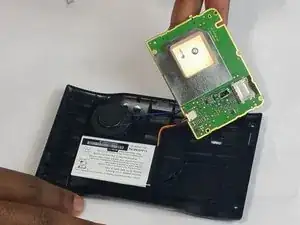

    • Lift the motherboard to reveal the cords underneath.

  3. b31D2dJL2SXFWVin

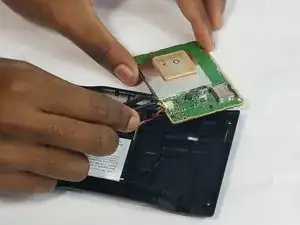

    • Find the cord that connects the motherboard to the battery

    • Disconnect this cord from the motherboard

  4. 4R5VNSuJ6PMUROUT

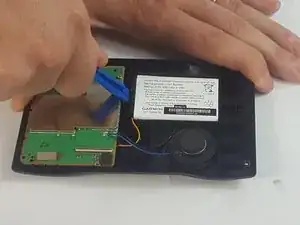

    • Using the plastic opening tool, pry the battery from the base of the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
