Garmin Nuvi 1390LMT Logic Board Replacement

Автор: Trey Ulsh
  • Комментарии: 1
Garmin Nuvi 1390LMT Logic Board Replacement

Сложность

Moderate

Шаги

7

Необходимое время

15 - 35 минут

Введение

This guide will show you how to disassemble the Garmin Nuvi 1390LMT GPS to replace the logic board.

  1. LTaMOyje3gOP24PT

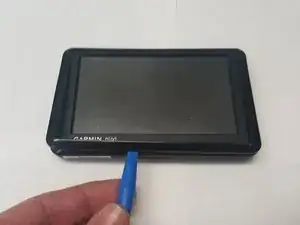

    • Snap the plastic cover off using a plastic opening tool.

  2. TJjeqqFSt3AslST1
    TJjeqqFSt3AslST1
    WAVqDceDw2cykTeF

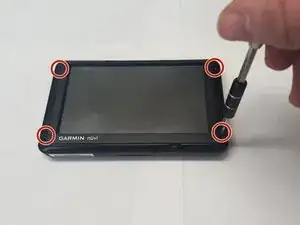

    • Remove the four black 11 mm T5 torx screws.

  3. pAV1ETN1tyCguljh

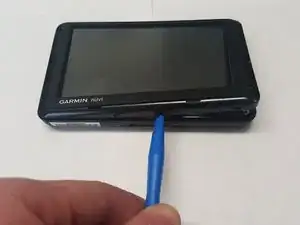

    • Pop the screen cover off with a plastic opening tool.

  4. vlvx56Oy5Ky1OU43

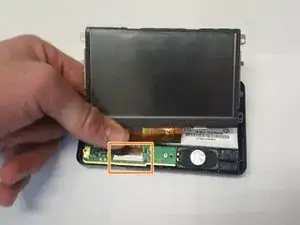

    • Gently pull the wire ribbon connecting the screen to the logic board from the plug.

    • Be careful when unplugging the wire ribbon. It is very fragile.

  5. M6cUqegc3hJwD6TW

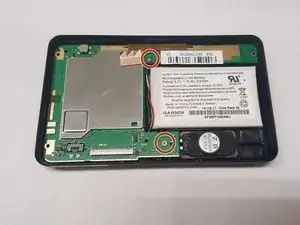

    • Remove the two silver 5 mm T5 torx screws connecting the circuit board to the plastic casing.

  6. RbMPjNFlXGwpSWRC

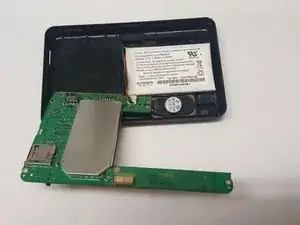

    • Flip the logic board over.

  7. X3N6IULK6FbKtwWh
    X3N6IULK6FbKtwWh
    Fi5K22KUpfSMgghB

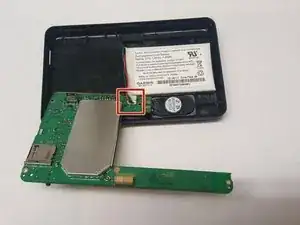

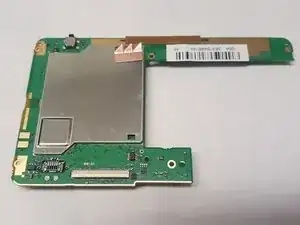

    • Disconnect the harness between the battery and the logic board.

Заключение

To reassemble your device, follow these instructions in reverse order.
