Garmin Fenix 3 HR Motherboard Replacement

Автор: Jacob Smiley
  • Комментарии: 3
Garmin Fenix 3 HR Motherboard Replacement

Сложность

Moderate

Шаги

8

Необходимое время

Нет оценки

Введение

This guide will give you all the necessary steps to change your old motherboard for a new one.

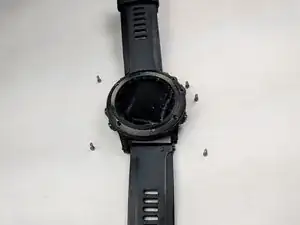

  1. x3eSfnOsa6umwpmD
    x3eSfnOsa6umwpmD
    AioGKNVCbOEOhROM

    • Remove the five 7mm screws with H1.3 hex screwdriver.

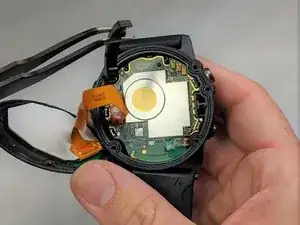

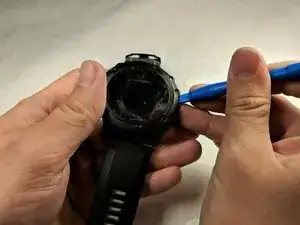

  2. W4u645ST1SUJMZ4d
    W4u645ST1SUJMZ4d
    LBfkW3NiHoPVT6D3

    • Use a plastic opening tool to remove the face of the device to expose the inner components.

    • There is one metal piece at the top of the face that is loose. This is the GPS antenna which will need to be removed as well.

    • Be careful of the ribbon that connects the motherboard to the display.

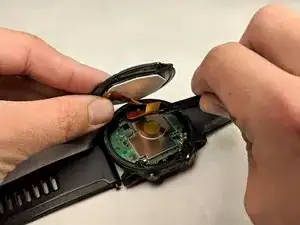

  3. 4n6bwimciOfqMxLw

    • Disconnect this ribbon from the motherboard using tweezers.

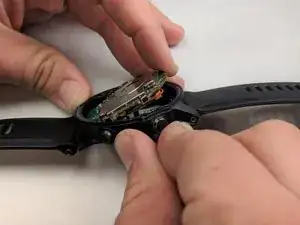

  4. if2XYpLvnIYCNR2F
    if2XYpLvnIYCNR2F
    TfeohqoMBNtJYn6q

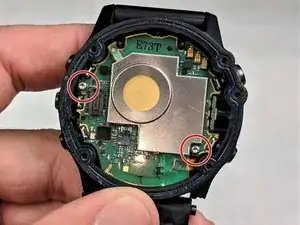

    • Using a T5 screwdriver, remove the two 5mm screws.

    • The motherboard should move freely.

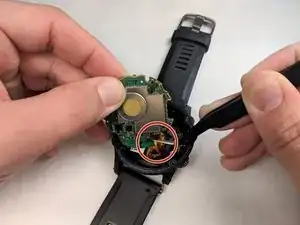

  5. nMHOOGYyGHkEWGpV

    • Another ribbon is attached from the underside of the motherboard. Disconnect this ribbon.

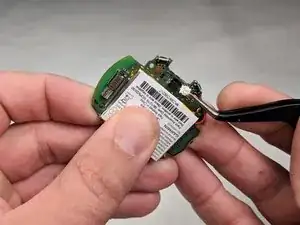

  6. USwYDPkTOjOkMfCf

    • Disconnect wires connecting battery to motherboard.

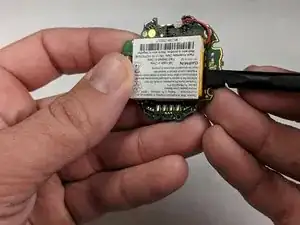

  7. DhGFNcMYVE3NxvQY

    • The battery is glued to the motherboard and will need pried off with a nylon spudger.

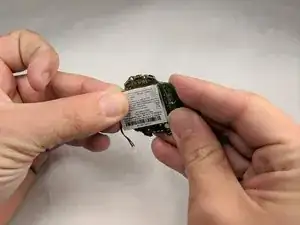

  8. xySRRnnKwSlQKfX6

    • Now attach battery to new motherboard and reassemble.

    Where can i get a new motherboard

    merlion chan -

Заключение

To reassemble your device, follow these instructions in reverse order.
