Введение

The GamStop Universal System is a device that allows you to connect multiple systems to your television, while easily switching between the systems. The selector button allows the user to chose which system to switch between when different gaming platforms are simultaneously running. If your selector button is malfunctioning and not allowing you to properly chose which platform to view this guide will demonstrate how to replace the selector button. Before starting this procedure be sure to power off your device to avoid further damage. This simple guid requires minimal time and some patients in order to takeout and replace the selector button.

Инструменты

  1. XRkXdJXHlSBtWNkn

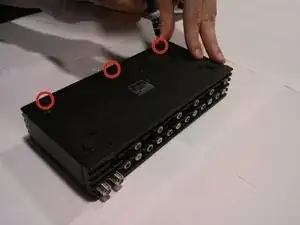

    • Disconnect the DC 6V IN power cable from the device.

    • Remove the three front panel screws on the bottom of the device using the Phillips #00 Screwdriver.

  2. OZLOVjRVOQGVmSKY

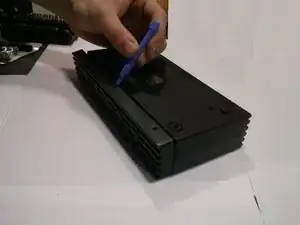

    • Carefully pry off the front panel of the device to reveal the button in need of replacement.

    • The outer piece of the device is plastic and may break it not carefully handled.

  3. 2tdUGPPhquAISGYT
    2tdUGPPhquAISGYT
    mMtJpFCaRHy1thKX

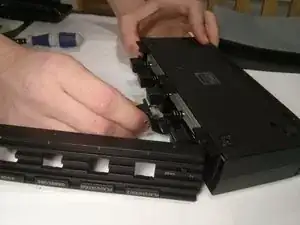

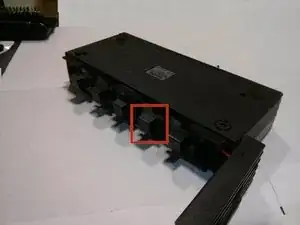

    • Pull firmly on the button in need of replacement to free it from its housing.

  4. bKWgQvWB6by2NZMa
    • Gently push the replacement button into its new housing.

  5. WDGtDRXoJfhjJCeP
    • Snap the front panel back into place and re-insert the 3 front panel screws, completing the replacement.

Заключение

The system selector button should now be working properly.
