Fujitsu Lifebook S6120 RAM Replacement

Автор: Jessi Gallant
  • Комментарии: 0
Fujitsu Lifebook S6120 RAM Replacement

Сложность

Very easy

Шаги

4

Необходимое время

5 минут

Введение

If the laptop is sluggish or is running out of storage then the RAM may need to be replaced, this guide will show you how to remove the RAM from the Fujitsu Lifebook S6120.

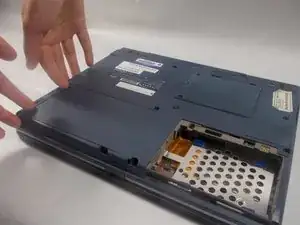

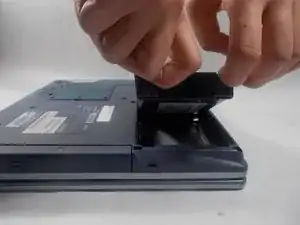

  1. slTsnYQyCQJKH4IG
    slTsnYQyCQJKH4IG
    nawwlcQFCQmJUuxv
    SpWAPvgTJBF2jyPP

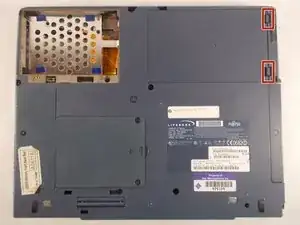

    • To prevent injury, make sure the laptop is unplugged and turned off before removing the battery.

    • Push the two tabs in towards the laptop.

    • Lift the battery up and out from the frame of the laptop.

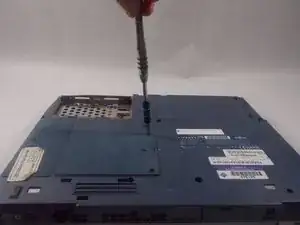

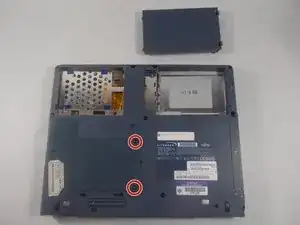

  2. jY4erNhW1OEuXvIX
    jY4erNhW1OEuXvIX
    2YNngr26UuUu3MIR

    • Use a Philips head #0 to remove the 4mm screws to the RAM cover.

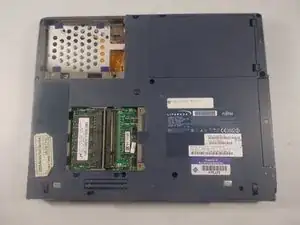

  3. M3MWeJ4121LqsDCK
    M3MWeJ4121LqsDCK
    OWSHFiHetKonuyoK
    QIUo4SWLGmUBtZnF

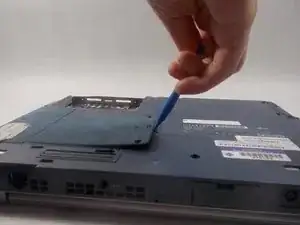

    • Use the plastic opening tool to lift the RAM cover.

    • Use your hands to slide the cover off.

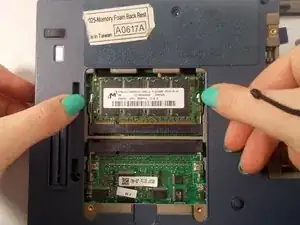

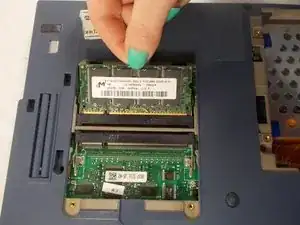

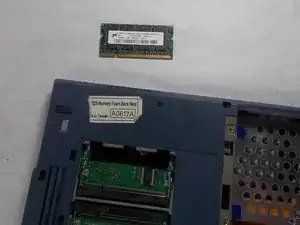

  4. yIO1fML3T2FXAxuP
    yIO1fML3T2FXAxuP
    agxCKKJB1SAXxyDK
    MjafGPSMEM1ysVTR

    • Remove RAM module by pushing security clips outward.

    • The RAM module should pop out.

    • Carefully pull RAM module out of the computer.

Заключение

To reassemble your device, follow these instructions in reverse order.
