Flip Video Ultra Circuit Board Replacement

Автор: Nathaniel Ruf
  • Комментарии: 1
Flip Video Ultra Circuit Board Replacement

Сложность

Moderate

Шаги

16

Необходимое время

15 минут

Введение

This guide will walk you through how to remove and replace the circuit board should your device be broken or malfunctioning. You will need a # 1 Phillips Head screwdriver, a plastic opening tool and tweezers. This easy process should take no more than 15 minutes.

  1. vjWwRsmaRCJtFELo

    • Unlock the battery cover by sliding the switch to the unlock position.

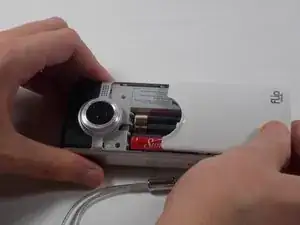

  2. OxsYsDXBRDQcu6SO

    • Remove the battery cover by sliding it down the camera.

  3. VtrDSNkGMHVrIs33

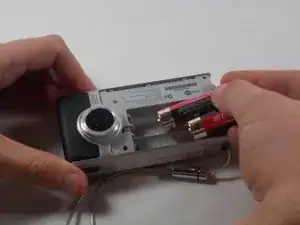

    • Remove the batteries

  4. ZDWOxdIW2iBnL3bv

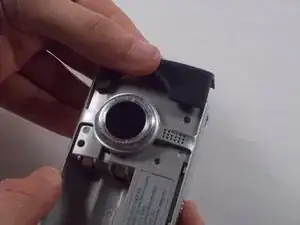

    • Slide the black upper casing off from the device.

  5. WlvJ3Ddw6qSiTnYW
    WlvJ3Ddw6qSiTnYW
    JQqWEqPJapMAIMbg

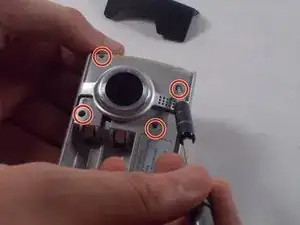

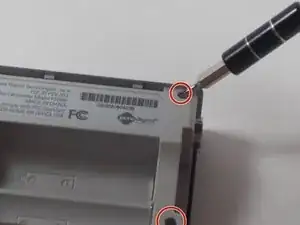

    • Remove the six 1mm screws from the back and upper casing with the Phillips Head screwdriver.

    small screw is bootom-right of lens, long screw is bottom-left of unit

    Will Moindrot -

  6. tiiK3yVDrDVhoZux

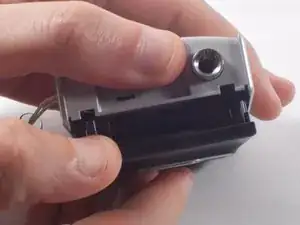

    • Remove the top casing from the bottom to reveal the inner circuit board.

  7. mElhKDhCrUZZgmtv
    mElhKDhCrUZZgmtv
    LqGGBpsE1KsPxk2q

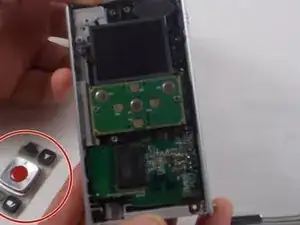

    • When removing the back panel, the rubber buttons will become loose and likely fall off the board. This is normal and can easily placed back on the board once finished.

    • Remove the six 1mm screws with the 1 Phillips head screwdriver.

  8. 2B4RMRgHGADOaMpG

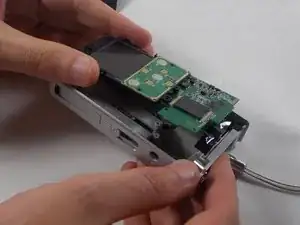

    • Gently separate the circuit board from the casing.

  9. BZsi2GHIRPD4bD6P
    BZsi2GHIRPD4bD6P
    qMjykMu6peP4tNYC

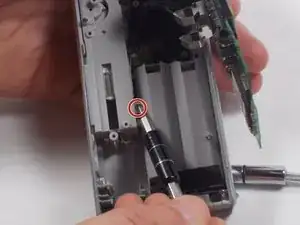

    • Unscrew the single 1mm screw from USB housing unit.

  10. PvxmgPN5FJRJLBJC
    PvxmgPN5FJRJLBJC
    fgvqCdGPEZNhaKqi

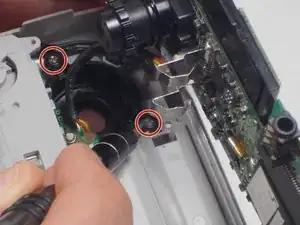

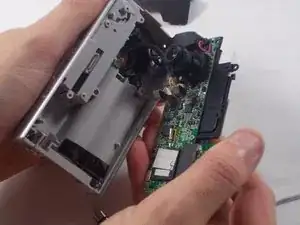

    • Unscrew the 2 1mm screws and gently separate camera wires from plastic casing.

  11. 45XMCBt3dUNOmRkZ

    • Gently pry out the USB housing unit with the Ifxit Opening Tool.

  12. P2PJnS6vJxDisXQ2
    P2PJnS6vJxDisXQ2
    J1cS5aTUtAof2JBp
    VFiWb2GKAOvZUfBt

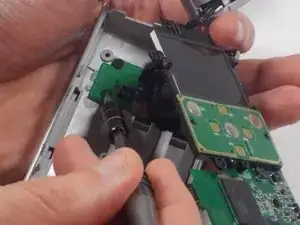

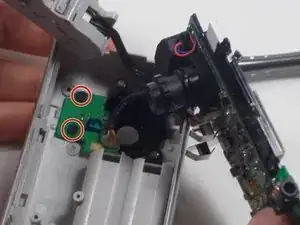

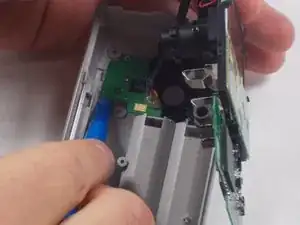

    • Remove the two 1mm screws and separate the circuit board and camera from the plastic casing.

  13. ENs3MRPTxAkKVaCs

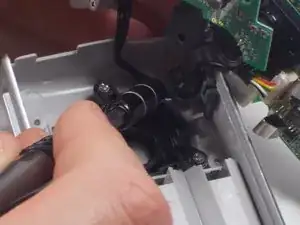

    • Unscrew the camera housing unit from the plastic case.

  14. oKMosZFedFESftVO
    oKMosZFedFESftVO
    iEOhQViI2NkNjBg3
    uCVcAm2K1sCMBhxC

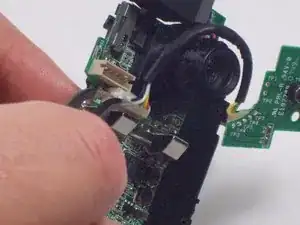

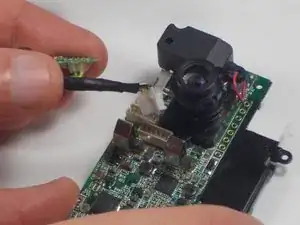

    • With tweezers, remove the microphone and USB connections.

  15. De1I13WuFcZS4SUL
    De1I13WuFcZS4SUL
    rDugVEPLFyt2XT4l

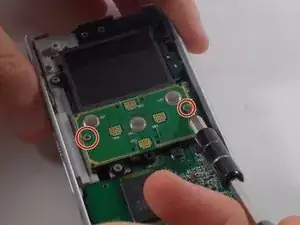

    • Unscrew the two 1mm screws from the board shown. Remove screen from circuit board.

  16. Pjnp2G1jlst4RkO1
    Pjnp2G1jlst4RkO1
    SJOIUBCWGZ6IValS

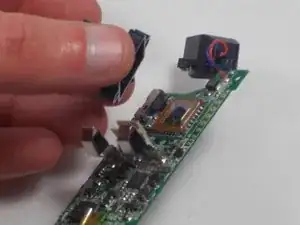

    • Remove the single 2.1 mm screw and separate camera from the circuit board.

Заключение

To reassemble your device, follow these instructions in reverse order.
