FDHD Floppy drive Disassembly

Автор: Thomas
  • Комментарии: 0
FDHD Floppy drive Disassembly

Сложность

Moderate

Шаги

10

Необходимое время

10 - 20 минут

Введение

Hello this is actually a cleaning for an FDHD Drive but since they didn’t have an option for cleaning I picked disassembly.

  1. EoY1gLnYHdjMIwuk

    • It’s best to pull Down and twist to pull the spring off

  2. lg4Ec55sl1R2MdUd

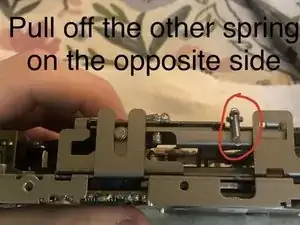

    • Once again pull and twist movement

  3. 1heMlI2sJ5KJxIZV

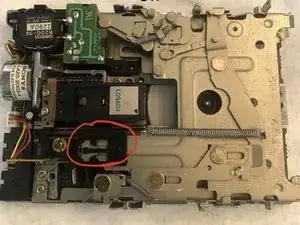

    • lift up on the really tiny tab with a flat blade screwdriver and slide it off

  4. Push Down

    • Push Down

  5. It may seem a little bit tricky at first but only push the ejection lever about halfway in

    • It may seem a little bit tricky at first but only push the ejection lever about halfway in

  6. YDtlioEedBTuIWMQ

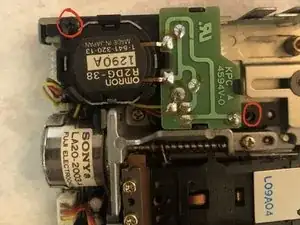

    • Remove these two screws and lift off the motor

    • Note: I did not have the second screw.

  7. JxuirUGZgSx3ws2I

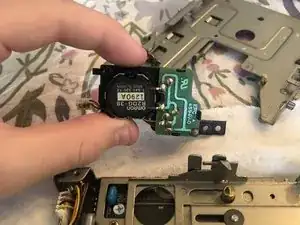

    • Unplug the motors 3-pin connector to make it easier

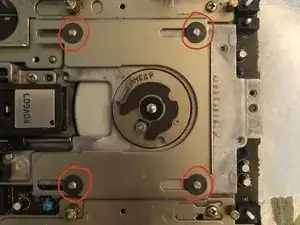

  8. QRIDusHRFOHgkBf6

    • Insert wisdom here.

  9. Insert wisdom here.

    • Insert wisdom here.

  10. Thank you for using my guide just clean any places where metal touches metal and reassemble

    • Thank you for using my guide just clean any places where metal touches metal and reassemble

Заключение

To reassemble your device, follow these instructions in reverse order.
