Введение

If the accessory holder is no longer able to hold the multiple tools associated with the vacuum, this guide outlines the its replacement.

Инструменты

  1. aav1p1YCx1xVdBLu
    aav1p1YCx1xVdBLu
    WTkZd2F1sI1RHiRC

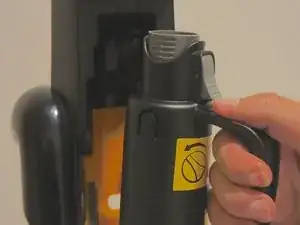

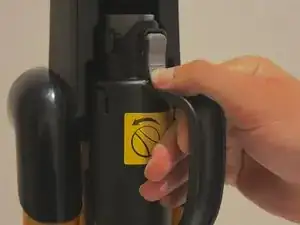

    • On the back of the vacuum, pull the handle connected to the hose away from the vacuum.

  2. 2OK46bSCqMsvFO53
    2OK46bSCqMsvFO53
    QaYC6v2EfXNSd5pJ

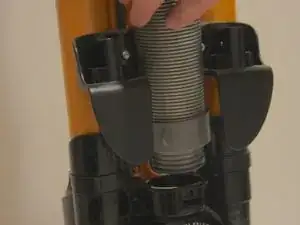

    • Grasp the thick smooth collar at the bottom of the hose and twist left (counterclockwise) to remove the hose.

  3. kCenUvDNfPDhLj4Y

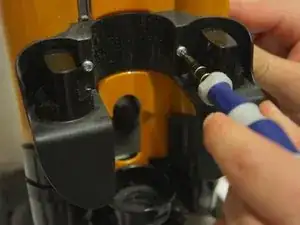

    • Using a T15 Torx Security Screwdriver, remove the screw on each side of the indention in which the hose normally rests.

  4. 3HsarRvHAqSWoaVQ

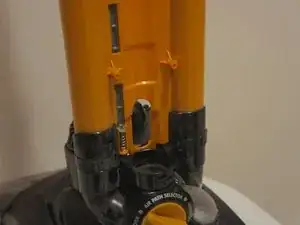

    • Upon removal of the two screws, the accessory holder can be removed from the vacuum body.

Заключение

To reassemble your device, follow these instructions in reverse order.
