Dyson Cinetic Big Ball Animal Upright Brushbar Power Button Replacement

Автор: Karla Sunjara
  • Комментарии: 0
Dyson Cinetic Big Ball Animal Upright Brushbar Power Button Replacement

Сложность

Moderate

Шаги

6

Необходимое время

15 минут

Введение

The Dyson brushbar power button is located in between the handle and the dust bin on the front of the vacuum.

  1. hS1odHCoRCNycfem

    • Gently pull up on red handle to separate the hose from the external hose of the Dyson.

  2. DrmSh1t6vEfYIRRm
    DrmSh1t6vEfYIRRm
    YXMV2QZWmUGqop4Y

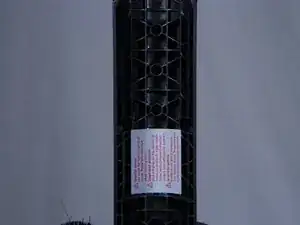

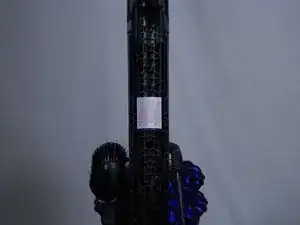

    • Locate the 18mm four screws on the Dyson above the sticker.

  3. hkrC1VIWLrXQuEsQ
    hkrC1VIWLrXQuEsQ
    gOH2sbKDMlc6IUnF
    rKMWydT1OPU2L3RY

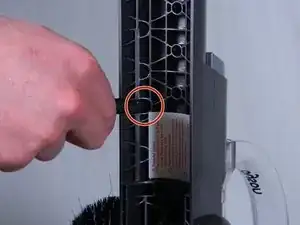

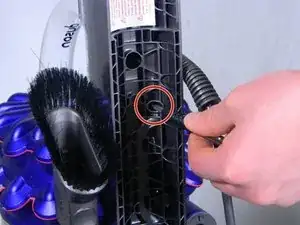

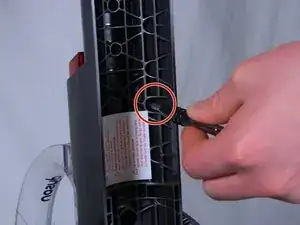

    • Unscrew the four 18mm screws.

  4. P1FRuyPFj5bMJOi3
    P1FRuyPFj5bMJOi3
    3osxPGLRoRKAJMnf

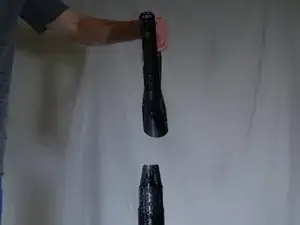

    • Locate and push the grey button (where the index finger is pointing) while simultaneously pulling up on the handle.

  5. jqKLDvZXHSKSHorF
    jqKLDvZXHSKSHorF
    MNCq5WWmvJu5EfNF

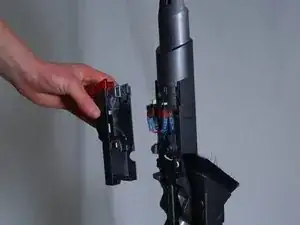

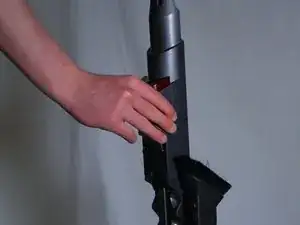

    • Pull on the plastic case below the power and brush bar buttons to separate it from the Dyson.

  6. meYAUvYpIhHsgSrV
    meYAUvYpIhHsgSrV
    WFaPbAd4BenSvXUr

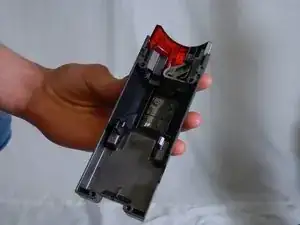

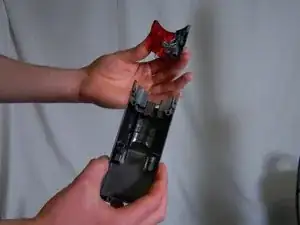

    • Slide the buttons out from the case and replace.

Заключение

To reassemble your device, follow these instructions in reverse order.
