Drift HD 720 Speaker Replacement

Автор: Hector Rodriquez
  • Комментарии: 0
Drift HD 720 Speaker Replacement

Сложность

Moderate

Шаги

6

Необходимое время

Нет оценки

Введение

If your playback sounds scratchy and not up to par, try replacing the speaker of your device with this guide.

  1. CQSsS3PpV4C45aBW
    CQSsS3PpV4C45aBW
    mwTp6DuBthJWIDnr

    • Unscrew the back plate counterclockwise until it comes off.

  2. IaGYOOVGZMGHkRbW

    • Push the black battery tab next to the battery to get the battery out.

    • Remove the battery.

  3. hEleJxSZrId5bKMi

    • Remove six 8mm long Philips head screws with the J0 Philips head from the outer case.

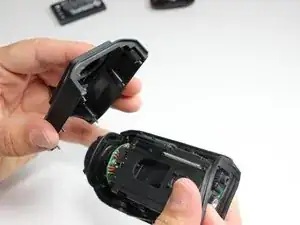

  4. 4mVEZ35RuRSmYfJH

    • Remove the back case from the camera body.

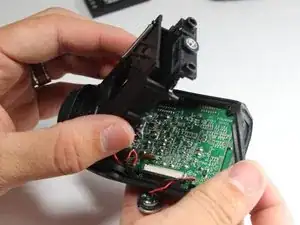

  5. bknCBguTbLWOirKd

    • Carefully remove the battery housing from the camera body.

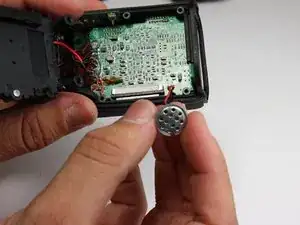

  6. H4xgAI4PKZrrrSQR

    • Remove the wires connecting the speaker to the motherboard from the motherboard, and solder the wires connecting the new speaker to the motherboard in the same locations as the wires that were removed.

Заключение

To reassemble your device, follow these instructions in reverse order.
