Disassembling Mouse Buttons for Logitech Wireless Gaming Mouse G700

Автор: Tomasz
  • Комментарии: 9
Disassembling Mouse Buttons for Logitech Wireless Gaming Mouse G700

Сложность

Easy

Шаги

15

Необходимое время

30 минут

Введение

This guide demonstrates how to disassemble the G700 mouse in order to reach the top mouse buttons for cleaning.

The mouse will be broken down into three main components: The circuit board, top housing, and middle housing.

  1. TkC1VPcTjjEjDMYS
    TkC1VPcTjjEjDMYS
    tSMZXFSbkXUbX2nO

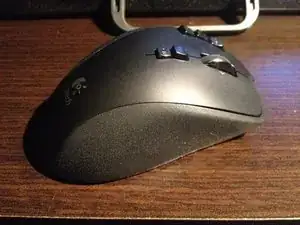

    • Unplug the USB cord from the top of the mouse.

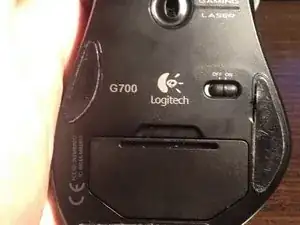

  2. ilPUnSO16NUhEoC4
    ilPUnSO16NUhEoC4
    4vmIWuurC54egd2L
    N2IikSWNCNDas5aY

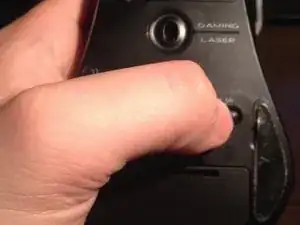

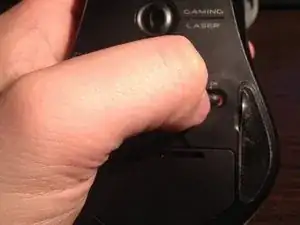

    • Power off the mouse. The power switch is located on the bottom of the mouse above the battery.

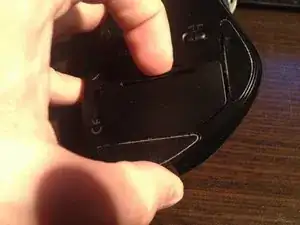

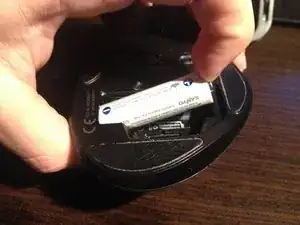

  3. Et21DRxPdROoWIJY
    Et21DRxPdROoWIJY
    BKwAWQPB4kbVmPOj
    WZuRK63Ga1TpLAtW

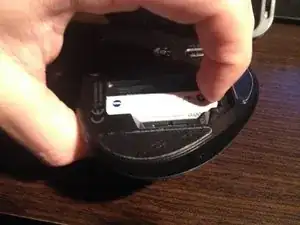

    • Remove the battery as illustrated in the images.

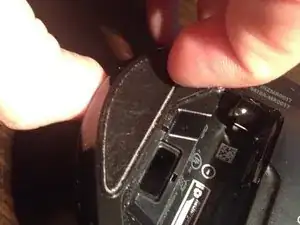

  4. QhDdgFetT5NVXQt2
    QhDdgFetT5NVXQt2
    SFESWeyEvGRACegA
    q2RxlrkXCTDHMHCn

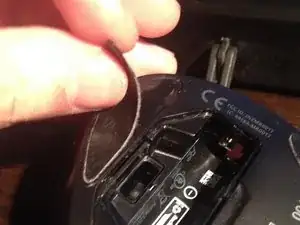

    • Peel off the four sticker pads located on the bottom of the mouse. They will be on the top, bottom and sides.

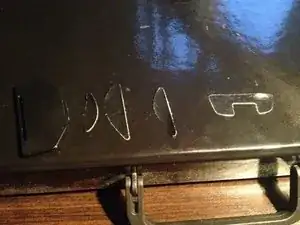

    • Stick these pads onto a clean, flat surface for safe keeping as you continue to disassemble the mouse.

    At this point it's very likely that you destroy the glides so it's probably a good idea to order some new before attempting the teardown.

    T_aus_M -

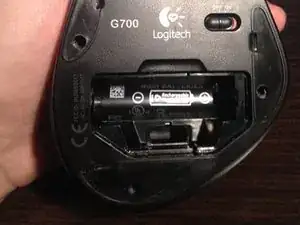

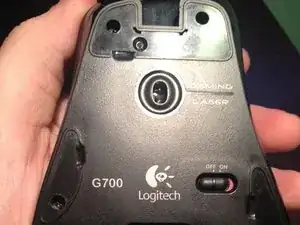

  5. o4NQFwwhunGQYaJP
    o4NQFwwhunGQYaJP
    QfZLwZ6QJZXbxNNL

    • Locate and remove the five screws that were hidden under the sticker pads.

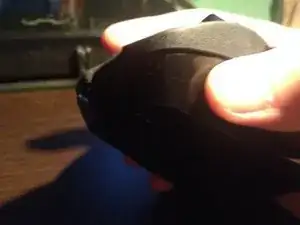

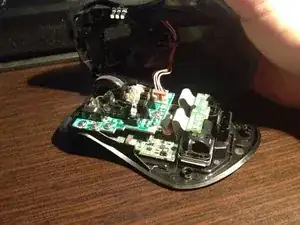

  6. FVvbyVKtnGXUOqmN
    FVvbyVKtnGXUOqmN
    kvqyjJd4Pc6mKjRu

    • Carefully pry off the top of the mouse. This will remove the housing from the circuit board.

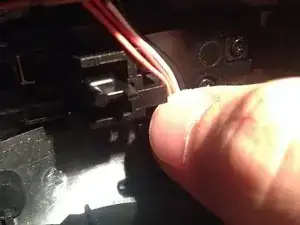

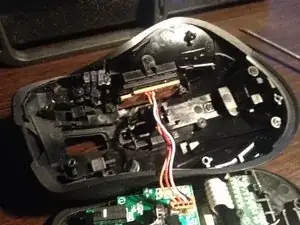

  7. wAyfQNK5GheLZgVD
    wAyfQNK5GheLZgVD
    2AOa3ARyfMJh3EN1
    3F21GSKrQNk2ljrY

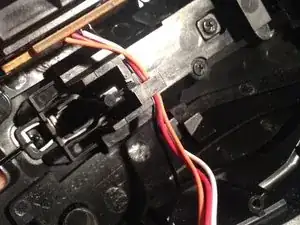

    • Gently detach the four wires from the holder of the housing.

    • View: Underneath housing

  8. bCflI2PPFlsvGwH2
    bCflI2PPFlsvGwH2
    NAkgaMCSX1qFcZrT

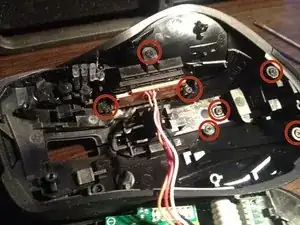

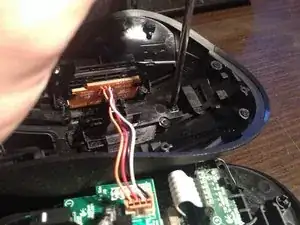

    • Remove the seven screws that hold the top housing, middle housing, and side keys together.

    • If disassembling for cleaning purposes, you need only to remove the four screws near the bottom in order to remove the top cover alone.

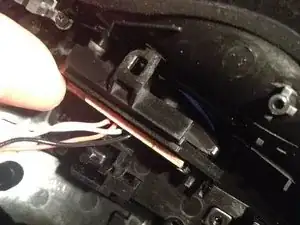

  9. dIEqgOYLF6jNUROn
    dIEqgOYLF6jNUROn
    oBSXr6VX3qPEDBkc
    iG6OSMNye65dvNmW

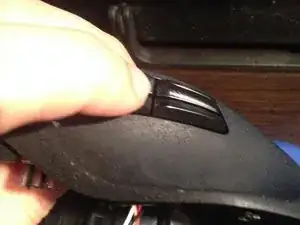

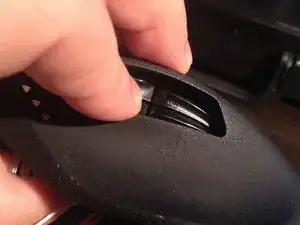

    • Press the side keys toward the bottom of the housing.

    • This will detach the keys and wires from the housing.

    u need to push the inside upward out of the slot before pushing the side keys in. ive break part of the slot by following this….

    vampirex_88killer -

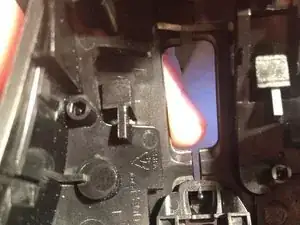

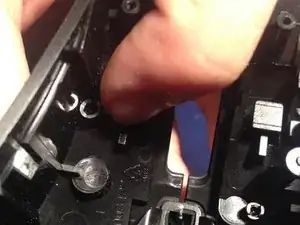

  10. tLVFar2PTjXD2BDX
    tLVFar2PTjXD2BDX
    UgUU2JmDDVRqGlfL
    YbiQgWFWIffGR3Wf

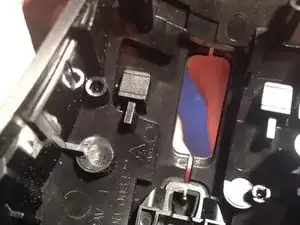

    • Gently pry the lock holding both mouse buttons.

    • View: Underneath housing (still one piece)

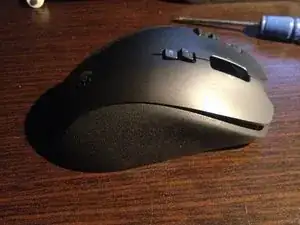

  11. aJwMXSLmo6J6eBPh
    aJwMXSLmo6J6eBPh
    5OuKmVGNGxFK25f1
    1rBIwZ52FfFCmQYt

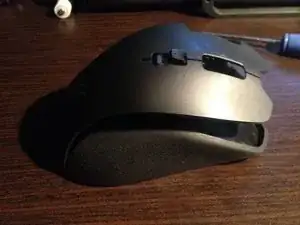

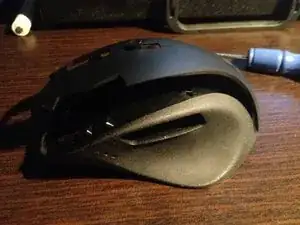

    • Gently pry away the upper part of the housing.

    • View: Housing divided into two pieces: top and middle

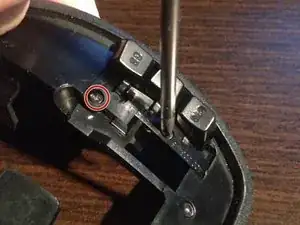

  12. tnGLQB2nCmvlJ5N1

    • Unscrew the two screws holding the part that locks the function buttons.

    • View: Underneath middle housing

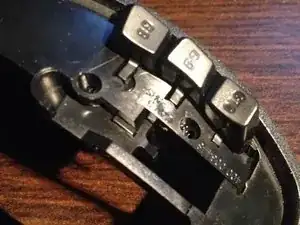

  13. JTTLrLJcPGmpnlmg
    JTTLrLJcPGmpnlmg
    3mZajHxGqYpSGlIG

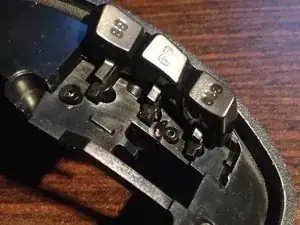

    • Slowly remove the plastic part you just unscrewed.

  14. bQs5m3XMJUtItwAh

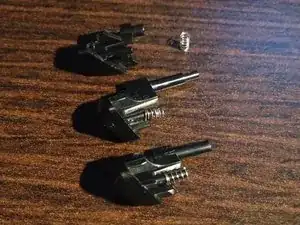

    • Carefully pull each button towards you.

    • Do not misplace the small springs attached to the buttons.

  15. HD5YOH5dRDWlROKj
    HD5YOH5dRDWlROKj
    vTqkFLHJKWOTXYbl

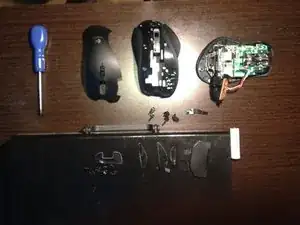

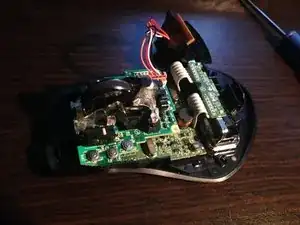

    • Congratulations! You are now able to clean the mouse.

    • Be careful when reinstalling the screws. Due to their small size, they strip the sockets easily if overtightened.

Заключение

To reassemble your device, follow these instructions in reverse order.
