Use this guide to replace the front or rear camera on your Digiland DL1168A tablet. If your device is experiencing issues such as blurry images, failure to open the camera app, or complete camera malfunction, replacing the faulty camera module may resolve the problem. This guide will walk you through the process step-by-step with detailed instructions and photos to ensure a safe and successful repair. Before starting, make sure your tablet is powered off and fully disconnected from any power source to avoid electrical damage or injury.
Инструменты
-
-
Using an opening tool, begin softly prying open device by first inserting it in between the front and back panels.
-
Continue prying the edges while moving around the device's perimeter until the back can be easily removed.
-
-
-
Use a plastic opening tool to gently insert between the front and back panels of the device. Carefully slide the tool around the perimeter to release the clips securing the back panel. Continue until the back panel can be lifted away without resistance.
-
-
-
Use a soldering iron to desolder the four wires connecting the rear case speaker to the motherboard. After desoldering, set the back panel aside.
-
-
-

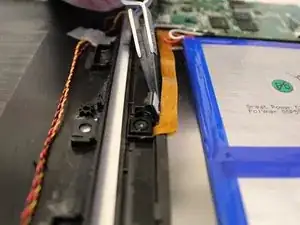

Use a pair of tweezers to carefully remove the plastic cover holding the camera lens in place. Avoid applying too much pressure to prevent damaging nearby components.
-
-
-

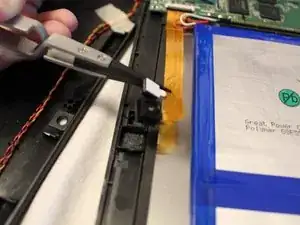

Use tweezers to slowly lift the rear portion of the camera. Caution: The camera is connected to the back casing with a small ribbon cable. Lift gently to avoid tearing it.
-
To reassemble your device, follow these instructions in reverse order. Make sure to resolder the speaker wires correctly before closing the case.
