DigiTech RP70 Footswitch Replacement

Автор: Elijah Smith
  • Комментарии: 1
DigiTech RP70 Footswitch Replacement

Сложность

Easy

Шаги

6

Необходимое время

2 - 5 минут

Введение

If one or both of the footswitches works inconsistently or not at all, refer to this guide.

  1. OrjgPDq2feho53Ai
    OrjgPDq2feho53Ai
    pAfkGCYBHXoL14ZC

    • Unplug the device from its AC power adapter; unplug anything connected to the input/output jacks.

    • Remove the four 8mm Phillips #0 screws located on the back panel.

  2. SvSqM1H4AY3dyrPv
    SvSqM1H4AY3dyrPv
    sGQFAGaGesvr6pbf

    • Remove the back panel to expose the motherboard.

  3. pIdYF3SBFiiSQHFX

    • Remove the two 11mm #0 Phillips screws located at the bottom of the motherboard.

  4. VClvmoEdeDiCuoQG

    • Lift the indented end of the motherboard opposite the input/output jacks. Then, pull away from the input/output jacks to slide the motherboard out of the casing.

  5. wviMJWsGCQsijutP
    wviMJWsGCQsijutP
    FqKPFqiAjvuTBnVT
    HYRWVWlM1bC6fFSI

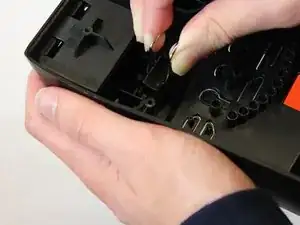

    • Pull firmly on the binder clips that are holding the footswitches in place to remove them.

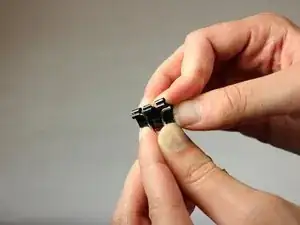

    • To get the binder clips back in place, you will need to attach handles from another binder clip to hold them open.

  6. Vx4TY1ZeOx5RsSnM

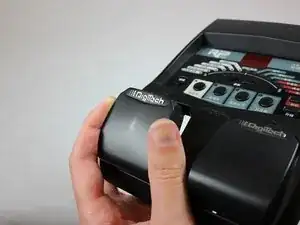

    • Pull the footswitch down and upwards to remove it from the casing.

Заключение

To reassemble your device, follow these instructions in reverse order.
