Dewalt DCF885 Switch Assembly Replacement

Автор: Brittney Dismuke
  • Комментарии: 1
Dewalt DCF885 Switch Assembly Replacement

Сложность

Easy

Шаги

11

Необходимое время

10 минут

Введение

This guide will show you how to replace the switch assembly.

  1. D4mLSkWysGyj2GHT

    • Press the battery release button at the top of the battery.

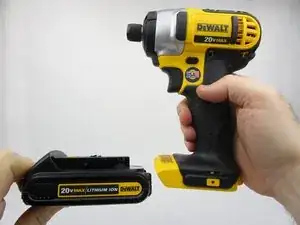

  2. X2RPQDIawpY2QTa3

    • Pull the battery away from the tool.

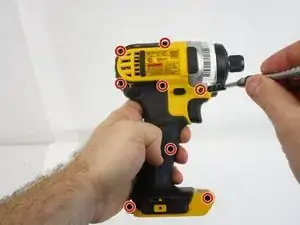

  3. HRd5lhECTLEpJDie

    • Remove the eight 18 mm Torx Security #10 screws.

    The area circled in red in the center of the three circles in a row going left to right above the trigger in the picture above is not a screw, it is just a square open area. The 8th screw is hidden by the persons hand in the picture, it is located just to the left of their thumb.

    Matt Souza -

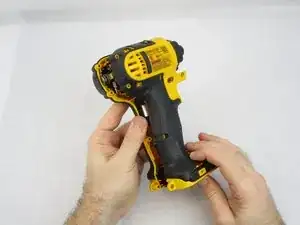

  4. Tpefd2EtpjY31LYq

    • Separate the two halves of the outer case. Set the empty side down and out of the way.

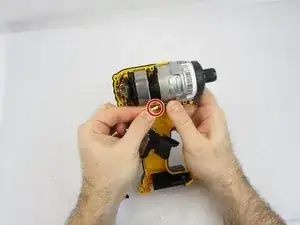

  5. nkLbAfvIU6rAs51x

    • Disconnect the connector from the motor assembly.

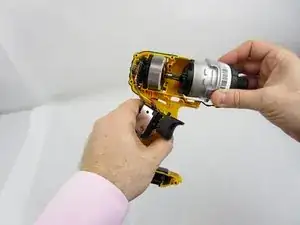

  6. pPGFJqOSbEFWOMaZ

    • Pull the motor away from the brush assembly.

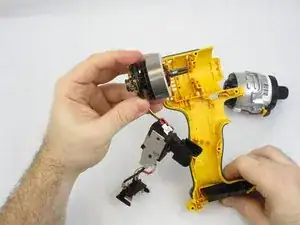

  7. NYAcworWny4R2rOY

    • Lift the brush assembly out of the drill case.

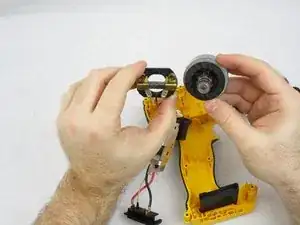

  8. inPa1Li14G4Nf53V

    • Pull the armature assembly apart from the brush ring assembly.

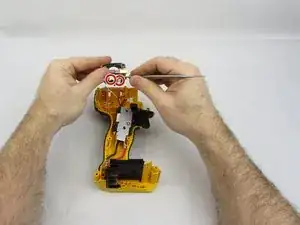

  9. bEQj4VOMSINeoojO

    • Pry the two circled connectors apart from the brush ring assembly.

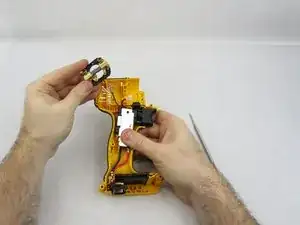

  10. xYJk3FYoSGwPYIww

    • The brush assembly is now removed from the drill body.

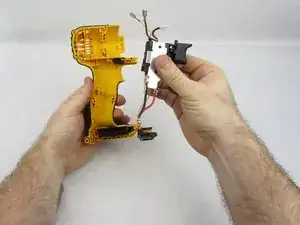

  11. eJwZVPNRIGXJJOgT

    • Pull the switch assembly up and out of the drill case.

Заключение

To reassemble your device, follow these instructions in reverse order.
