Dell XPS 18 Support Feet Replacement

Автор: Austin Weir
  • Комментарии: 0
Dell XPS 18 Support Feet Replacement

Сложность

Moderate

Шаги

7

Необходимое время

10 минут

Введение

This guide will show you how to replace the support feet if you have broken one.

  1. stUOnfnBUE6YN5x3

    • Turn the device on its screen.

    • Remove the ten 4mm screws using a T8 Torx screwdriver.

  2. EsppVhHdF4hHa6VF

    • Gently flip out support feet located near the bottom of device.

  3. P4B3cAjtRTeQ3VGb

    • Gently lift the back cover off the device. The back cover should come off easily.

  4. 6bcWKX22vIOLc1FZ

    • Fold down the support foot.

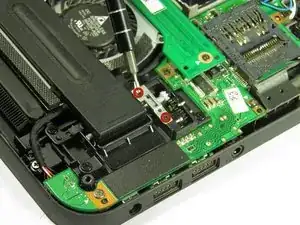

  5. tcQMBoomO1XQuwIb

    • Remove the two silver 3mm screws with a Phillips 00 screwdriver.

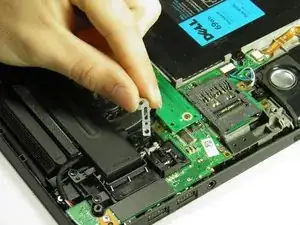

  6. R3DxFxF6MJu5boRi

    • Remove the silver metal piece holding the support feet down.

  7. rsieoDt4OtlWc1SN

    • Remove the support foot.

    • Follow these same steps for the remaining support foot.

Заключение

To reassemble your device, follow these instructions in reverse order.
