Dell Vostro 3750 Hard Drive Replacement

Автор: Johnathan Hammond
  • Комментарии: 1
Dell Vostro 3750 Hard Drive Replacement

Сложность

Moderate

Шаги

9

Необходимое время

9 - 20 минут

Введение

In this guide, we will be showing you how to remove and replace the Hard Drive.

Инструменты

  1. iySR4bCBte2hJhK1

    • Slide the release latches to unlock the battery.

  2. A2gJdxIKqXrNxPHV

    • Slide the battery out of the chassis and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. 1dLJSqUOQGF3Unh3

    • Loosen the screws that secure the memory door.

  4. yBTKXRlUiBqKEkdW

    • Pry up the memory door near the screw hole, lift, and remove it

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  5. dDUOYfBOYVIkyuCW

    • Remove the screws that secure the hard-drive bracket.

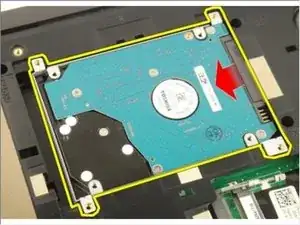

  6. DDaXfKQLt4qWZxHC

    • Slide the hard drive module in the direction shown in the image below.

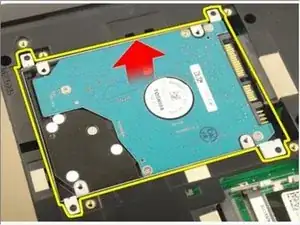

  7. NyQ1D5cIZpV2UjBR

    • Remove the hard drive module from the system board.

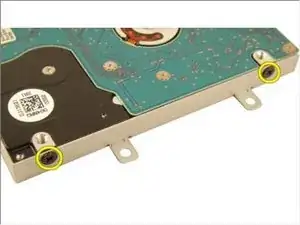

  8. Bjt6uxP2GOFjgbCn

    • Remove the screws that secure the hard-drive bracket.

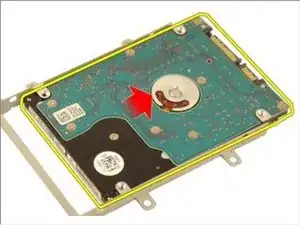

  9. Lt2SytTjhhR5soxK

    • Slide the hard drive from the hard-drive bracket.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
