Dell Vostro 3561 Hard Drive Replacement

Автор: Johnathan Hammond
  • Комментарии: 0
Dell Vostro 3561 Hard Drive Replacement

Сложность

Moderate

Шаги

9

Необходимое время

9 - 20 минут

Введение

Инструменты

  1. iLkyCeDnwkpeTcUP

    • Flip the computer over.

    • Slide the battery release latch to the unlock position.

  2. S3cqOa4bOoWLsaBo

    • Slide the other battery release latch to the unlock position.

  3. kROAHdWTGTOdxlDZ

    • Slide the battery and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  4. DTMbT6wfTVbDBMPC

    • Remove the screws that secure the base cover to the computer.

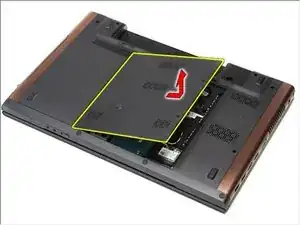

  5. wZDRhsjaEkMBwQHg

    • Lift up the base cover and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  6. mbdxEbJYgZxB5Aix

    • Remove the screw that secures the hard-drive assembly to the computer.

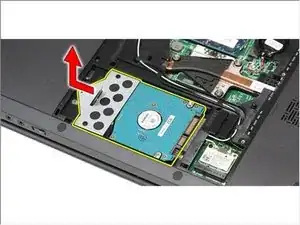

  7. LRmTnq6cLWULRE5M

    • Slide the hard-drive assembly towards the center of the computer and lift it up and away from the computer.

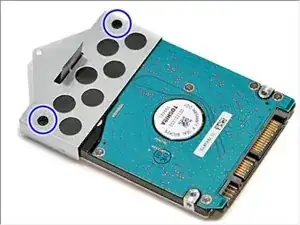

  8. tvc1j1cwGoUjgbIB

    • Remove the screws that secure the hard-drive bracket to the hard drive.

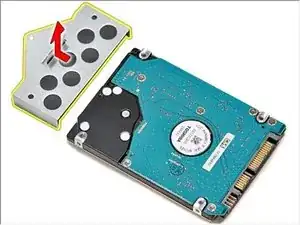

  9. PAxp4HnITBGTHfYs

    • Lift up the hard-drive bracket and remove it from the hard-drive assembly

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Заключение

To reassemble your device, follow these instructions in reverse order.
