Dell Vostro 3560 RAM Replacement

Автор: Max Bareilles
  • Комментарии: 0
Dell Vostro 3560 RAM Replacement

Сложность

Easy

Шаги

7

Необходимое время

10 минут

Введение

This guide will show you how to replace the RAM in your Dell Vostro 3560 laptop. Some parts of this guide was made with info from this video.

  1. ljW4IyxO5EkL5QpT
    ljW4IyxO5EkL5QpT
    BL26LyRyaXZMuGwg

    • Make sure you have the right laptop by checking the sticker.

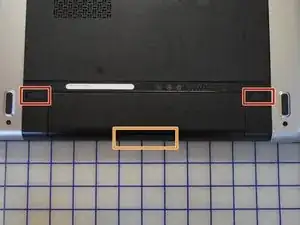

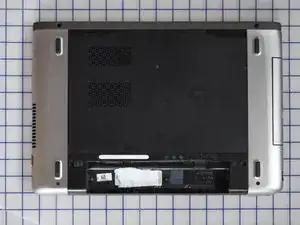

  2. xdxNTFxYwMEgGwIA
    xdxNTFxYwMEgGwIA
    U3aBlIYhyBy2KNxj

    • Start with your PC shut off and upside down.

    • Pull out tabs.

    • Pull up on rail to remove battery.

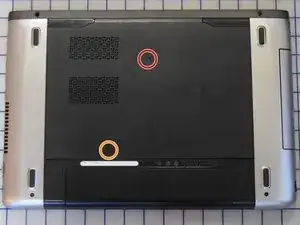

  3. cL1TwWqMRXy3pQdg

    • Remove the two screws:

    • One M2 Phillips screw (Fixed)

    • One 5-mm M2 Phillips screw

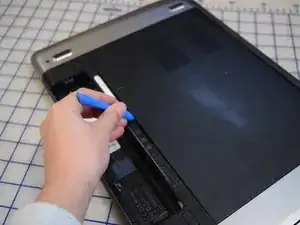

  4. 1patoIBc5tCNQqmf
    1patoIBc5tCNQqmf
    t1wGu1EHZBLogwTR
    To1VXMPiW5pDb1vO

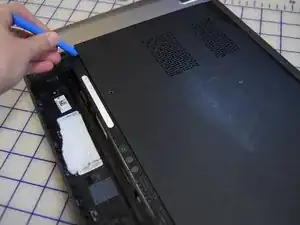

    • Use a iFixit opening tool to remove the back panel.

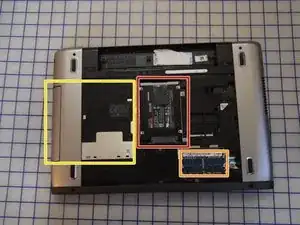

  5. lnfQxFnvG3BEIuGZ

    • From here you can access:

    • The hard drive

    • The RAM.

    • The CD Drive.

  6. jEvRxbDjDNMUe1Or

    • We will focus on the RAM.

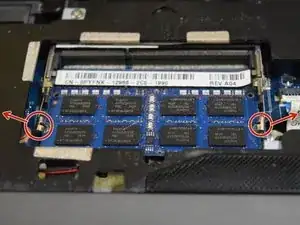

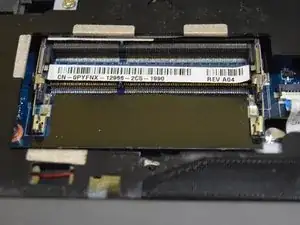

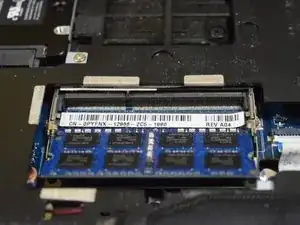

  7. x5AI4MZNZH6OHiLy
    x5AI4MZNZH6OHiLy
    QxHyPN1QnCtD2ByF
    SqRmu4YhjQ2DVtlT

    • Pull out on the tabs to release RAM.

    • Pull out the RAM.

    • If you have two SoDIMMs installed, start with the top one and repeat the proccess for the lower one.

    • When reinstalling ram, make sure it is fully inserted before fully locking it down.

Заключение

To reassemble your device, follow these instructions in reverse order.
