Dell Vostro 3555 Access Panel Replacement

Автор: Johnathan Hammond
  • Комментарии: 0
Dell Vostro 3555 Access Panel Replacement

Сложность

Easy

Шаги

4

Необходимое время

4 - 8 минут

Введение

Инструменты

  1. MLnJwSXe3aBmvBtR

    • Slide the release latches to unlock the battery.

  2. 1KLRJYtBkHnX4OfN

    • Slide the battery and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  3. VdcewZ2QoWXqWEDx

    • Remove the screws that secure the access panel to the base of the computer.

  4. UHT5tHONwf6vLIIM

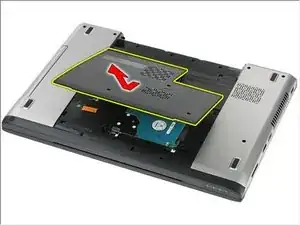

    • Lift the access panel up at an angle and remove it from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Заключение

To reassemble your device, follow these instructions in reverse order.
