Dell Vostro 1500 Disk Drive Replacement

Автор: Timothy Letourneau
  • Комментарии: 1
Dell Vostro 1500 Disk Drive Replacement

Сложность

Moderate

Шаги

6

Необходимое время

5 минут

Введение

This guide will show you how to replace the disk drive on your Dell Vostro 1500. There will be one screw you need to remove and it should take around five minutes.

  1. tQThMjLTXakyfWCB

    • Make certain the power is off.

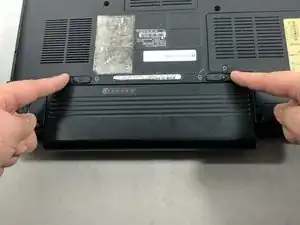

  2. 5KMMcCiTmdPSKPqF

    • Press and slide the buttons inward.

    On my Vostro, the buttons have to be slid OUTWARDS, not inwards, to release the battery.

    Michael Field -

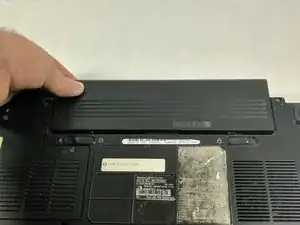

  3. BxLZphELMq3ZiI6d

    • Slide the battery away from the computer.

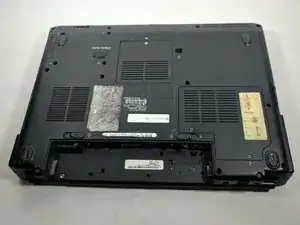

  4. mUpXu2rSh2im3Cct

    • Remove the battery from the slot.

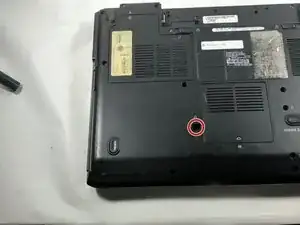

  5. 1v4iCAuYijMJFjik
    1v4iCAuYijMJFjik
    aIFYUsLyEOMmI6Ex

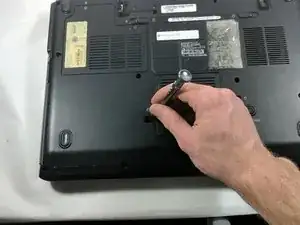

    • Unscrew the one 8.5mm Phillips head screw.

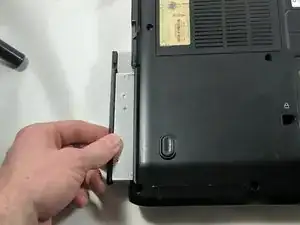

  6. WCD2N2gkW1eCb4Mn

    • Slide out the disk drive. This may require some force.

Заключение

To reassemble your device, follow these instructions in reverse order.
