Dell Precision M6600 Hard Drive Replacement

Автор: Kaley lindsay
  • Комментарии: 2
Dell Precision M6600 Hard Drive Replacement

Сложность

Moderate

Шаги

4

Необходимое время

10 минут

Введение

  1. LFqDcahOVu4bwGEO

    • Slide the lock key to unlock the battery. Then you can lift the battery from its holder.

  2. WQfeSySfcWLkebwj
    WQfeSySfcWLkebwj

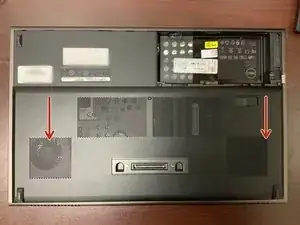

    ZCZg2LHoXaaf2Qom

    • Using Phillips screwdriver, remove 2 screws holding case.

    • Slide case towards back of laptop then lift off to remove.

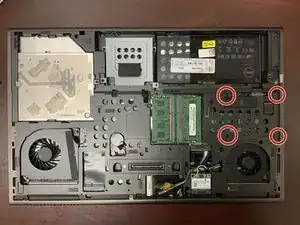

  3. hwSsKJLEkaAIh3SK
    hwSsKJLEkaAIh3SK

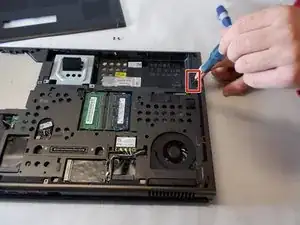

    anfIqPQhELDKKSZI

    • Using a Phillips Screwdriver, remove the 4 screws that hold the hard drive in place.

    • Using a Phillips #00 take out the 1.5mm screw then slide to unlock the SSD holder.

    There is also four more screws holding the drive in place, two at the front of the drive and two at the sides, These will need to be taken out before the drive holder will slide out.

    Willaim Chalmers -

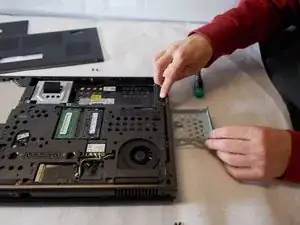

  4. QusJZyDpg6vqvEaU

    • When the lock was slid, a medal holder popped out and that is where the SSD is hidden.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Kaley lindsay

Участник c: 23/03/18

582 Репутация

Один комментарий

How do you remove the bottom? Instructions only show removal of battery then next step shows full access to bottom of laptop? My slide switch doesn’t release the door, any thoughts?

Jason Zuehlke -
