Dell Optiplex GX620 Fan Replacement

Автор: Padraic Hoselton
  • Комментарии: 0
Dell Optiplex GX620 Fan Replacement

Сложность

Moderate

Шаги

10

Необходимое время

10 - 30 минут

Введение

Инструменты

Запчасти

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

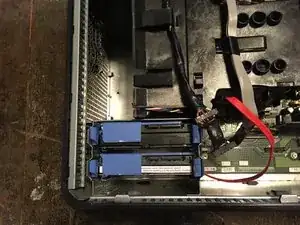

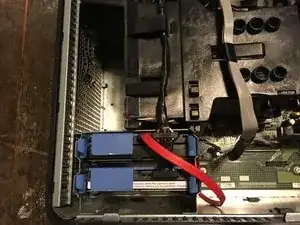

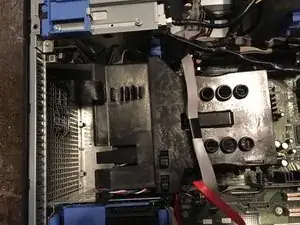

  4. GdIZCEXgZGkhmqxG
    GdIZCEXgZGkhmqxG
    TOgXSJ2AMjoPJ4mk
    ODPEadTCKCxJEleF

    • Unplug your hard drives power and data cables.

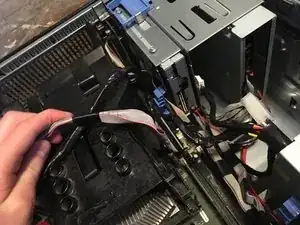

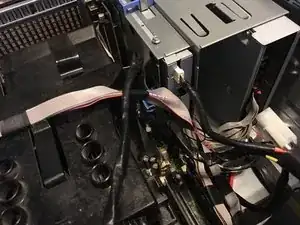

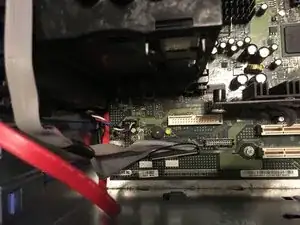

  5. 5VWsSL3CPqqYhJHk
    5VWsSL3CPqqYhJHk
    gaPRN43jDhwAVfPe
    L5NngJJkcOeDkMMi

    • Unplug the power and data cables.

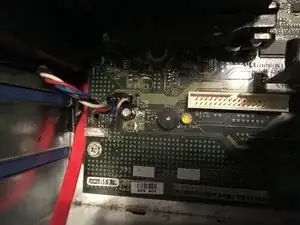

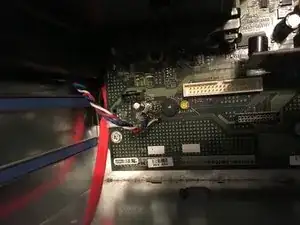

  6. FrAQTGGbsXlWs1cM
    FrAQTGGbsXlWs1cM
    dDcArFGDoBJUwVI2

    • Unplug the fan.

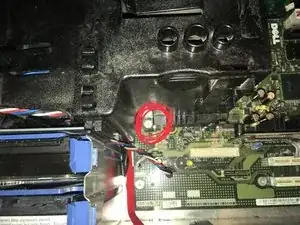

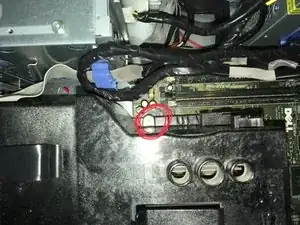

  7. jOFC2lFgGYoCpWJ3
    jOFC2lFgGYoCpWJ3
    LjQiUKZToONsWa16

    • Remove the two Phillips #2 screws.

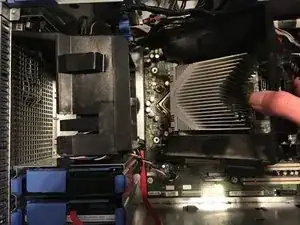

  8. oVZDFLslH31SfVEr
    oVZDFLslH31SfVEr
    pDPJYfEya6LOEQRH
    HxQSVrN1ercv4RwA

    • Pull the heat sink up.

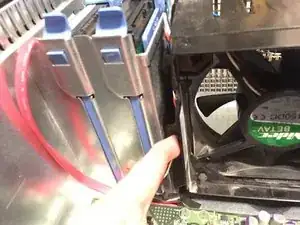

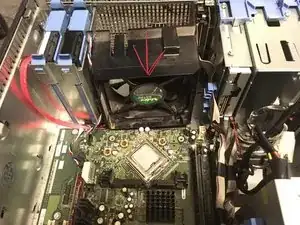

  9. Gy2VEjmDZmJLAOwD
    Gy2VEjmDZmJLAOwD
    PlgDbgN66qJXNZSu
    MblIPWmkUDZVNpSr

    • Pull the two tabs and pull it out.

    • This needs a lot of force to take it off.

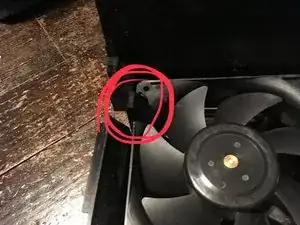

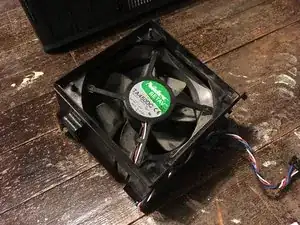

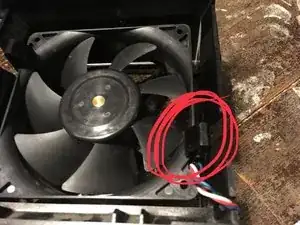

  10. UOJhrQXWQqmBBstN
    UOJhrQXWQqmBBstN
    vAgHSwrSa5QQDGAr
    dZAXks12FEVaqaDK

    • To take the fan out you have to pull the two tabs and pull the fan out.

Заключение

To reassemble your device, follow these instructions in reverse order.
