Dell Optiplex 745 Small Form Factor RAM Replacement

Автор: Brandon Cooper
  • Комментарии: 1
Dell Optiplex 745 Small Form Factor RAM Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 - 10 минут

Введение

This guide will teach you how to replace the RAM within your computer.

  1. XCHqm6cF2OD2pIMM
    XCHqm6cF2OD2pIMM
    URwbcn32NyXYWTsC

    • Pull the tab and the lid will pop up.

  2. ZpAyvrC6FXiViYUH
    ZpAyvrC6FXiViYUH
    CVtxCFSScLFWCLAv

    • Grab the lid and pull it up and off.

  3. doeUSuwaCJnKRMcr
    doeUSuwaCJnKRMcr
    fd3XXxG1mchtVub3

    • Pull out both sets of cables from the side of the optical drive.

    • Both cables are plugged into the drive right next to each other.

  4. WfRJLwDeyEYglJBy
    WfRJLwDeyEYglJBy
    AOjIknNFWYhajXYW

    • Pull the tab up holding the optical drive in place.

    • Slide the optical drive out.

  5. CgCb5SCrwYsxHRno
    CgCb5SCrwYsxHRno
    ZucsnVrBHkRCEb2f

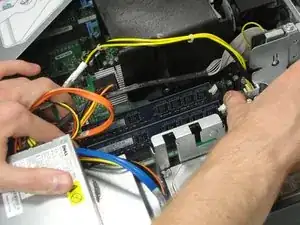

    • Press down on the white tabs on both sides of the RAM stick until the RAM stick pops up.

  6. HvkwXnoC6J2fJZKj

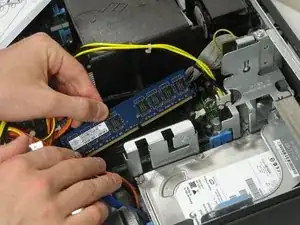

    • Gently lift the RAM stick up and out of the case.

    • When inserting a RAM stick, press firmly down into the slot until the white tabs lock into both sides of the stick.

Заключение

To reassemble your device, follow these instructions in reverse order.
