Dell Latitude E6520 CMOS/Coin Cell Battery Replacement

Автор: Aaron Thomas
  • Комментарии: 0
Dell Latitude E6520 CMOS/Coin Cell Battery Replacement

Сложность

Easy

Шаги

4

Необходимое время

4 - 7 минут

Введение

  1. SwLCyB3QQxmIVA4j
    SwLCyB3QQxmIVA4j
    3pmFfWpKOM51ykZT

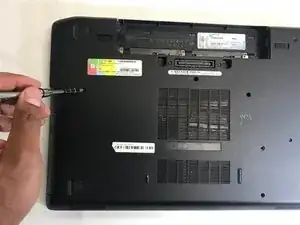

    • Remove the ten 8.6 mm JIS #0 screws.

  2. 51dnONcmjmDLqdEj

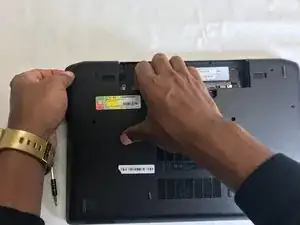

    • Place fingers underneath cover and pull off the cover.

  3. JTayVEQPZyiVcNSO

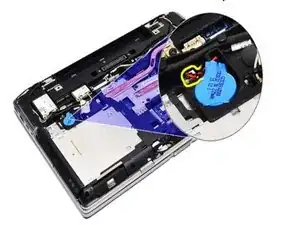

    • Disconnect the coin-cell battery cable from the system board.

  4. b4NNRfOBPn3xyNoT

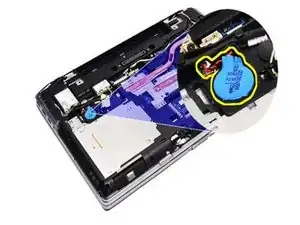

    • Release and remove the coin-cell battery from the computer

Заключение

With your new CMOS battery, reassemble your device by performing the instructions above in reverse order.
