Dell Latitude E6420 Screen Replacement

Push the tabs on the left and right of the battery out towards the edge of the case.

While still pushing in the tabs, using your pinky finger, lift the battery out of the laptop.

Open the laptop and lay it flat on your work surface.

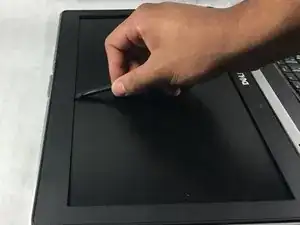

Using the spudger, lift the bezel up from around the laptop screen.

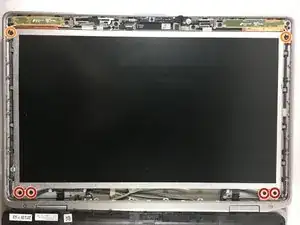

Using the screwdriver, remove four 5mm Phillips #0 screws from the bottom of the laptop screen.

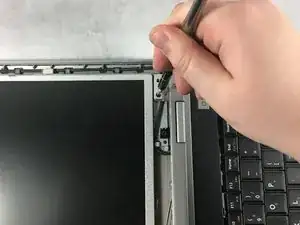

Using the screwdriver, remove two 3mm Phillips #0 screws from the top of the laptop screen.

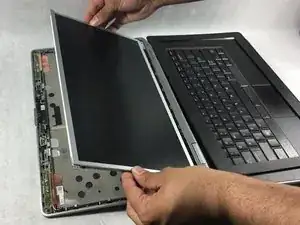

Lift the screen.

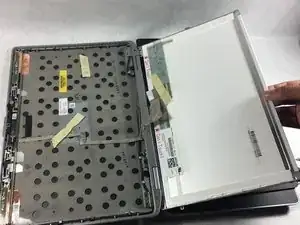

Lift the laptop screen and flip it over to lay it on top of the keyboard.

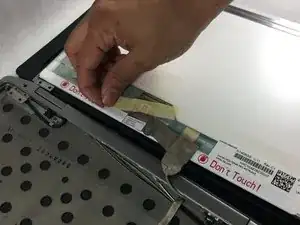

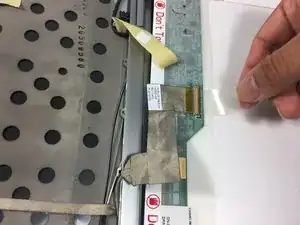

Remove the piece of tape from the back of the LCD cable.

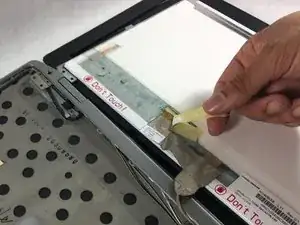

Lift the piece of tape attached to the LCD cable.

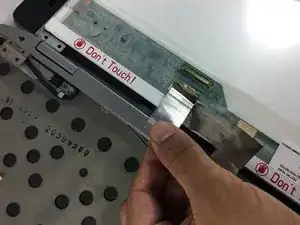

Once the tape has lifted, gently pull back to unplug the LCD cable.
