Dell Latitude D600 RAM (Main Memory) Replacement

Find the battery

Pull the tab to release the battery

Pull the battery out

Find the panel underneath the microsoft product key sticker, the panel is labeled with an M

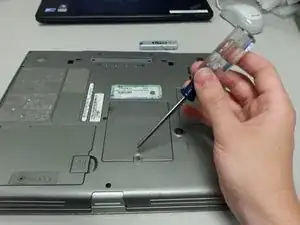

Unscrew the single screw above the M

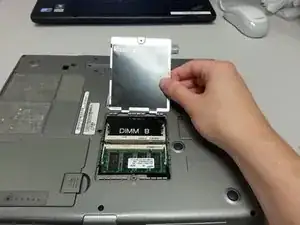

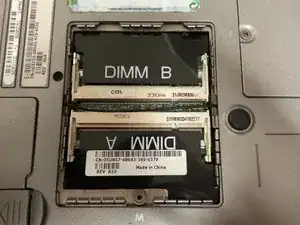

Pull off the panel to reveal the RAM

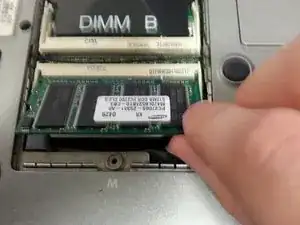

RAM is held in by two tabs, pull each tab to the side and the RAM will pop up

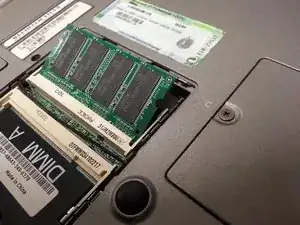

Once the RAM is popped up, slowly pull it out of the slot

To add or replace RAM, place the memory into the slot at an angle

Make sure you line it up correctly

If it is in correctly it should stay up at an angle by itself

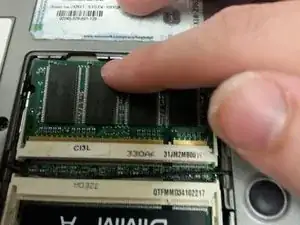

Then push down in the middle until it clicks into place

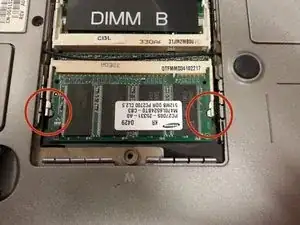

The RAM should be secured by the tabs where the two semi circles are on the RAM

If it is not secure, just gently pull it out and try again, use the images to help you out
