Dell Latitude D430 RAM Replacement

Сложность

Moderate

Шаги

4

Необходимое время

5 минут

Введение

The RAM is essential for a computer to function, and must be replaced if is found to be faulty.

Инструменты

  1. gOy1yI3w6VsLsIsI
    gOy1yI3w6VsLsIsI
    CsdUkWYckKNBDdDI
    S4n3CafMP5FIAGbI

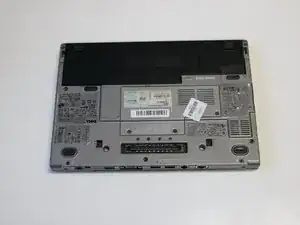

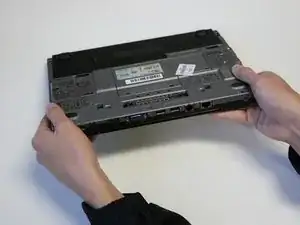

    • Flip the laptop so that the battery is facing up, and the Dell logo is facing down on the surface the laptop is placed on.

  2. vFDmDCpgXKeLVsta

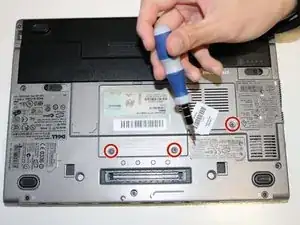

    • Use a Phillips #00 screwdriver to remove the 3 screws that hold the L-shaped back panel down.

  3. b5YAPUdSKiQTGMgt

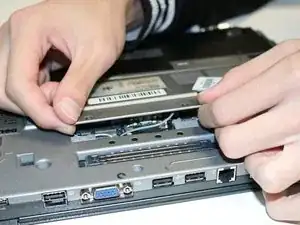

    • Lift the L-shaped panel by the corners, and set it to the side.

  4. sImZRt2D4hBDMGax
    sImZRt2D4hBDMGax
    OMZSkYDyxrGwLnST

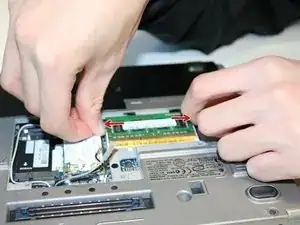

    • Pull on the outside tabs keeping the RAM stick in place.

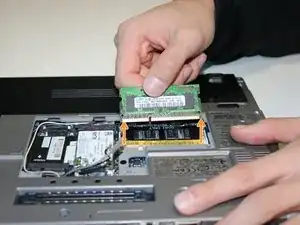

    • The RAM should then pop out and can be easily removed by pulling away from the slot.

Заключение

To reassemble your device, follow these instructions in reverse order.
