Dell Latitude 9410 2-in-1 SSD Replacement

Автор: Jessica Stephens
  • Комментарии: 0
Dell Latitude 9410 2-in-1 SSD Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 20 минут

Введение

If you're finding many corrupted files or data, software incompatibility, hard drive errors, or an overall faulty SSD, then use this guide to replace the solid-state drive (SSD) of the Dell Latitude 9410 2-in-1. This guide should fix most file and incompatibility related issues on your laptop.

although, be sure to check the troubleshooting page before moving forward with replacement in case your problem is unrelated.

  1. AYC1YKfmwof4Jwty

    • Ensure that the laptop is unplugged and powered off before beginning.

    • Place the laptop upside down on a flat surface.

  2. ynIr1NqMFFiOjWND
    ynIr1NqMFFiOjWND
    rhBiBAx1FTwh5ODf

    • Use a Phillips #00 screwdriver to loosen the ten captive screws.

    • The screws are permanently fastened to the base panel; do not attempt to remove them.

  3. GuHQBTHYlavdulJP
    GuHQBTHYlavdulJP
    asAXStlTtcyfvROb
    Z1xLSZYcQe3KdRaA

    • Carefully lift off the back panel.

  4. JMWbJUGFtYxPYvSh
    JMWbJUGFtYxPYvSh
    1Im2TDUasHSiUdAG
    3tA51t2eaJmm2oSy

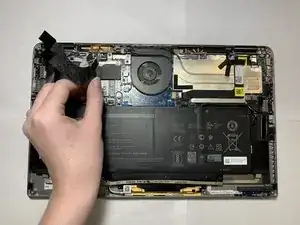

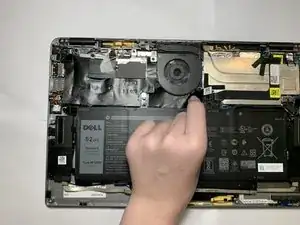

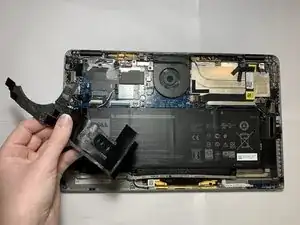

    • Carefully peel back and remove the black tape around the top left corner of the motherboard.

  5. tuhCWXH3luSvvuXp
    tuhCWXH3luSvvuXp
    NTBnGCmqicFhoOoG
    iV5rAqfRvNQf5SZ6

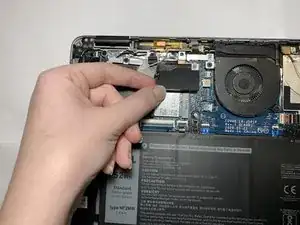

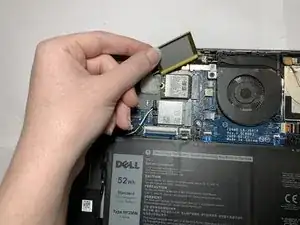

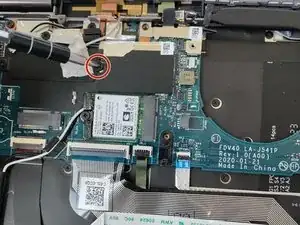

    • Use a Phillips #00 screwdriver to remove the 2 mm screw, loosening the bracket that covers the SSD.

    • Carefully lift the off the bracket.

    • The bracket is attached to the laptop and cannot be removed completely.

  6. PUwgoZJAoZsr1lDW
    PUwgoZJAoZsr1lDW
    scI2fLdjWNdLeLnD
    EBjUoiCiqhopOswX

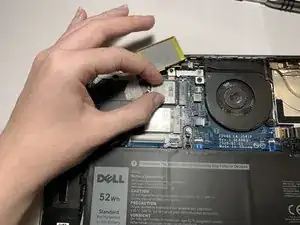

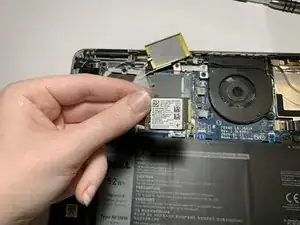

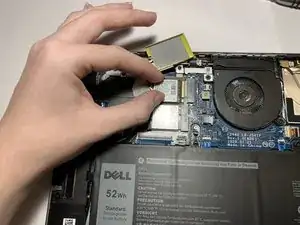

    • Grip the SSD and pull directly backward until the SSD releases from its port.

Заключение

To reassemble your device, follow these instructions in reverse order.
