Dell Inspiron n5110 - Keyboard Replacement

Автор: ZFix
  • Комментарии: 3
Dell Inspiron n5110 - Keyboard Replacement

Сложность

Easy

Шаги

3

Необходимое время

5 - 10 минут

Введение

How to remove not working keyboard and install a new one.


Please SUBSCRIBE to my channel ツ

  1. EgxDnof1mbrxoxxt
    EgxDnof1mbrxoxxt
    k5YdGEOsWXMJuVtW

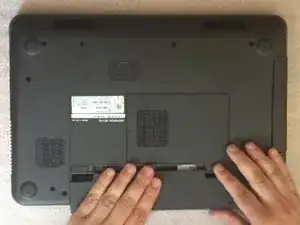

    • Switch off the laptop and remove the battery.

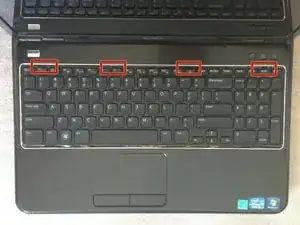

    • The Keyboard is held by 4x locking clips.

  2. vsPQOXWqN4jDHurl
    vsPQOXWqN4jDHurl
    sBwsswI4BUGPEEOo
    bplLcGGBZRPpEpqv

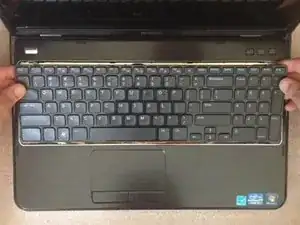

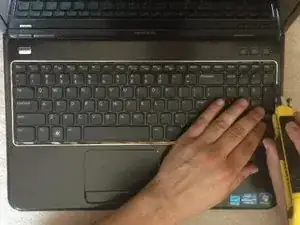

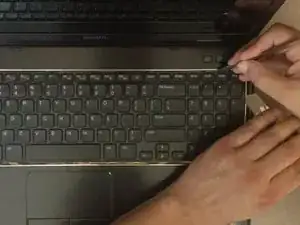

    • By using cutter, carefully lift up the one side of the keyboard and start opening the locking clips.

  3. WoVPpYORHlPJq5Db
    WoVPpYORHlPJq5Db
    QPB1qmPHSO2QEJ1h
    lws4vdtCOfp3hgwt

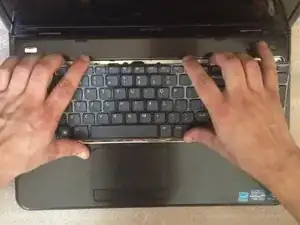

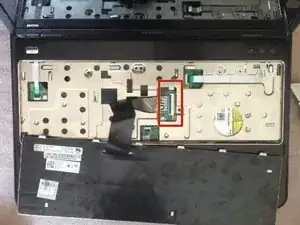

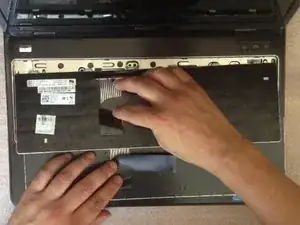

    unlock the keyboard pair, the black one, by lift it up.

    Suradet Chaimongkol -

Заключение

To reassemble your device, follow these instructions in reverse order.
