Dell Inspiron n5050 Display Replacement

Автор: Tyler
  • Комментарии: 4
Dell Inspiron n5050 Display Replacement

Сложность

Difficult

Шаги

7

Необходимое время

Нет оценки

Введение

Replacing the display is difficult because there are delicate cables that need to be manipulated.

  1. uQbpZsCfux2ORquJ

    • Flip your laptop over to view the bottom and locate the two locks.

  2. XbdU6yDTi2uQDWvF

    • Slide the two locks away from each other.

    • Sliding these locks will loosen the battery to allow removal.

  3. cSX5c1IPS2O1WZqB
    cSX5c1IPS2O1WZqB
    hubMXhZEUipkL1qi

    • Pull battery out of the laptop.

    • Your laptop's battery should be completely removed.

  4. L1OXNrCxFTJATM2N

    • Flip laptop right side up and open

    • Insert flat side of spudger gently along inside of screen and screen surround.

    • Work your way around the screen carefully releasing the screen surround from the lid.

    • The screen surround is held in place by delicate plastic clips, so don't use too much force.

  5. g1oF5cJRxPLp6Z4g

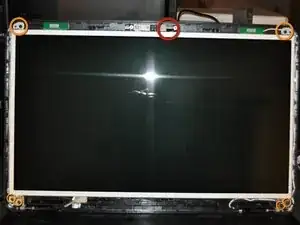

    • Unplug the cable from the camera.

    • Unscrew the six screws attaching the display support frame to the laptop lid. Lower lid to desk.

    • The lid still has the WIFI antenna connected to it.

    • When reassembling, plug the cable to the camera first, then screw in the lid.

  6. Co44DeBsxFUrXPQU
    Co44DeBsxFUrXPQU
    kZjrWKikQpOokGBD
    UBf64u1ufWS3XTmL

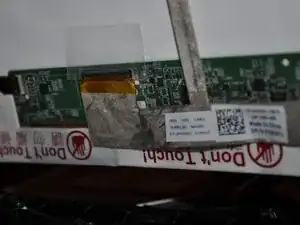

    • Unplug the cable from the display.

    • This cable has delicate wires that can easily break. It is glued to the back of the display, but can be carefully peeled away.

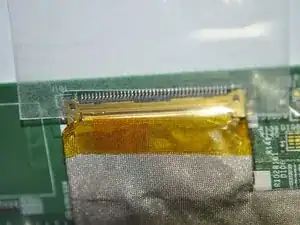

    • The plug is held in on the sides with two clips. Gently pull on the each side of the cable to remove it from its connector.

  7. LRY6be2OWQGfh1qj
    LRY6be2OWQGfh1qj
    yXvHIxYXuXJYQZmg

    • For this part, it is easiest to use a magnetized screw driver.

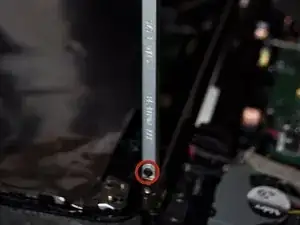

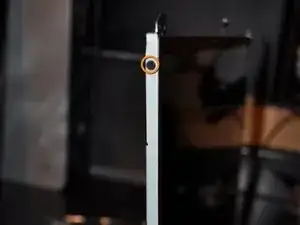

    • Unscrew display from display hinge/support bracket. There are two screws on each side.

    • Unscrew the bottom screws first.

    • Unscrew the top screws while holding onto the screen with your other hand so it doesn't fall.

Заключение

To reassemble your device, follow these instructions in reverse order.
