Dell Inspiron 530 DCMF Graphics Card Replacement

Автор: Drew Cunningham
  • Комментарии: 1
Dell Inspiron 530 DCMF Graphics Card Replacement

Сложность

Moderate

Шаги

4

Необходимое время

10 - 15 минут

Введение

This guide will walk you through how to replace the graphics card in your Dell Inspiron 530 DCMF.

The graphics card is responsible for rendering images, videos, and any animations on your computer. The higher quality of graphics card, the higher the resolution images and videos will appear.

Be sure to power off the desktop and remove all sources of power before replacing your graphics card.

Инструменты

  1. 2Fu6uTJLg2n6IVBK
    2Fu6uTJLg2n6IVBK
    P3wVdfNZ6do4FqEQ

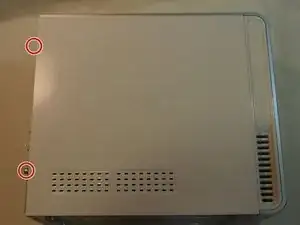

    • Remove the two screws.

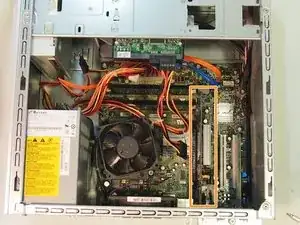

    • Slide out the panel back.

  2. msf1HKJWOuoWIjXr

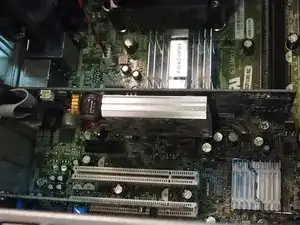

    • Locate the graphics card. It can be identified by its position on the motherboard and built-in fan.

  3. 3AeIfyANtqBqTjNW
    3AeIfyANtqBqTjNW
    N4vqN1N2xrClh1TP

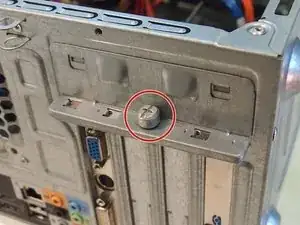

    • Unscrew the screw.

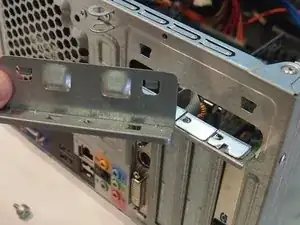

    • Remove the metal piece that holds the graphics card in place.

  4. vXvmUJlGjq2T6se2

    • The graphics card can now be taken out by sliding it upwards.

Заключение

To reassemble your device, follow these instructions in reverse order.
