Dell Inspiron 530 DCMF Bios Battery Replacement

Сложность

Moderate

Шаги

2

Необходимое время

15 - 20 минут

Введение

Replacing a BIOS battery is a quick and easy fix. This guide will show how to open the case and replace the CMOS battery of your Dell Inspiron 530 DCMF desktop computer.

Инструменты

Запчасти

  1. CSUw3SrtSpFWtsqK
    CSUw3SrtSpFWtsqK
    aOIYAyrFiZUFpScH

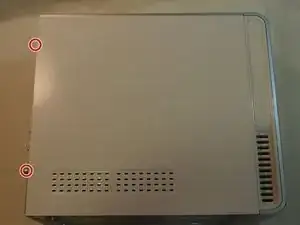

    • Unscrew the two highlighted screws in this image

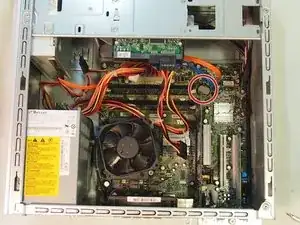

    • Slide the side panel toward the back of the computer to open the case and access the internals of the device.

  2. 5c5HmUnXhiyyeaVo
    5c5HmUnXhiyyeaVo
    TDUdPRRQK2NIIXLv
    2nSsmXfIwOM4jpbl

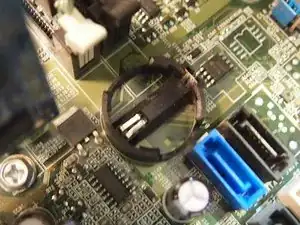

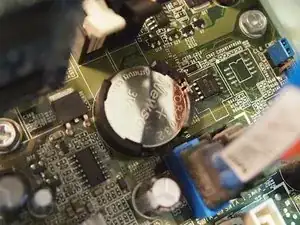

    • The CMOS battery has to be removed properly to avoid damaging the motherboard.

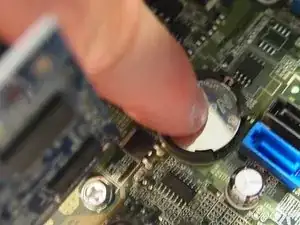

    • Using either your fingers or a spudger, press the small metal tab securing the battery to remove it.

    • Insert a new battery, reattach the side panel, and you've successfully replaced the BIOS battery.

Заключение

To reassemble your device, follow these instructions in reverse order.
