Dell Inspiron 15R RAM Replacement

Автор: Trixie Gonzalez
  • Комментарии: 0
Dell Inspiron 15R RAM Replacement

Сложность

Easy

Шаги

8

Необходимое время

5 - 10 минут

Введение

The Dell Inspiron is expandable up to 8GB. If the device is running slowly, you can purchase its maximum memory capacity.

Инструменты

  1. eScueNUKVq5DoaLI

    • Turn the device over and locate the battery.

  2. pxDX2YkXarUrXhE6
    pxDX2YkXarUrXhE6
    ubZ5IMWHPfyR3KHE

    • Place thumbs on each latch and push outwards.

  3. hO1taWArGBwMOC3l

    • Push and slide the battery away from you.

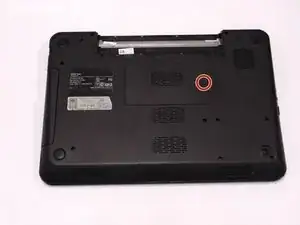

  4. EbNlVK6J2n2ffEyi

    • Locate the RAM compartment on the device and locate the screw on the right hand side.

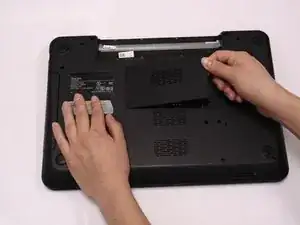

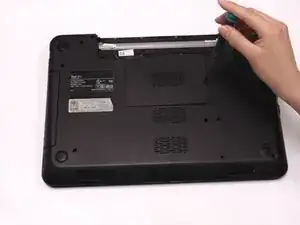

  5. Qc5UZBOxdflWBJ3p
    Qc5UZBOxdflWBJ3p
    S5ZLR1JiRWj1vWPB

    • Take your screwdriver and loosen the screw. Then remove the cover.

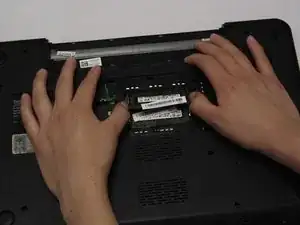

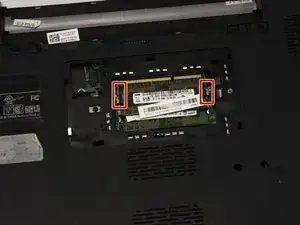

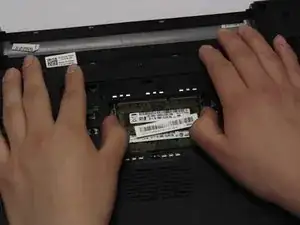

  6. ZbCShQItJqVgyHBs
    ZbCShQItJqVgyHBs
    VFh5IuRIeEQtNuLx
    pOQQ4DUGVIqJm2hF

    • Place both thumbs on the latches and push outward. The RAM card will pop up.

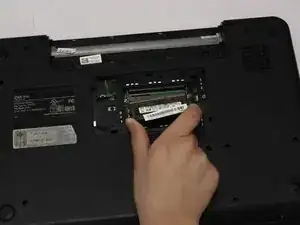

  7. HEYSd3UMqnlIJCCe

    • Carefully hold RAM card from the sides and pull away.

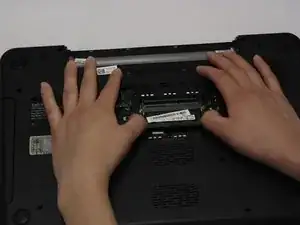

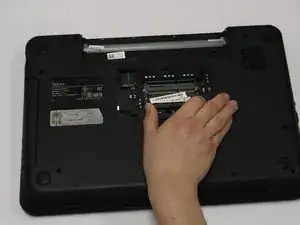

  8. VKjKCJDQNf22HMue
    VKjKCJDQNf22HMue
    GsKTwoIHFHUS1jFA

    • Repeats steps 6 and 7 for the second RAM card.

Заключение

To reassemble your device, follow these instructions in reverse order.
