This guide will show how to access your DVD drive.
Инструменты
-
-

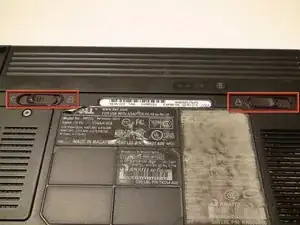

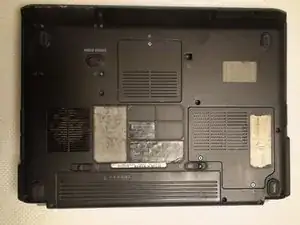

Identify the lock mechanisms holding the battery in place.
-

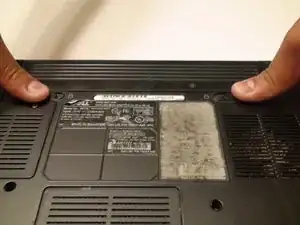

Slide each button outward with your fingers to disengage the battery.
-

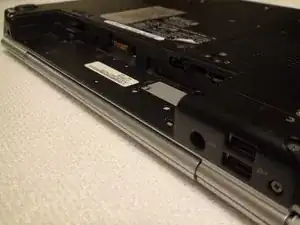

Pull the battery off with your hand to separate it from the laptop.
-
-
-

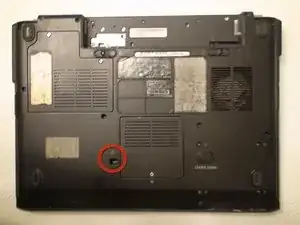

Locate the 4 mm Phillips #1 screw next to the white padlock image that holds the DVD drive in place.
-

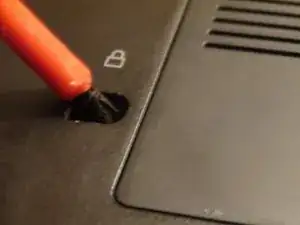

Remove this screw with a Phillips #1 screwdriver.
-
-
-

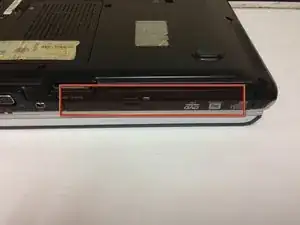

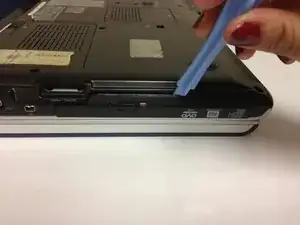

Use a plastic opener tool to carefully pry the DVD drive out of its pocket on the side of the laptop.
-

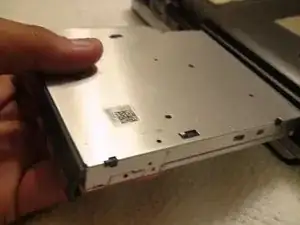

Once sticking out, pull the DVD drive the rest of the way out with your hand.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
