Dell Inspiron 15-7548 Battery Replacement

Автор: Christopher Fisher
  • Комментарии: 1
Dell Inspiron 15-7548 Battery Replacement

Сложность

Easy

Шаги

4

Необходимое время

9 - 10 минут

Введение

This guide will walk you through the process of replacing a dead or damaged battery in your Dell Inspiron 15-7548.

  1. knLVFeuIYeP2ABLa
    knLVFeuIYeP2ABLa
    YLShUY4tnrdyWVtM

    • Remove the six 6 mm screws from the back panel with a Phillips #1 screwdriver.

    • Loosen the four captive screws at the bottom using a Phillips #1 screwdriver.

    • The four screws on the bottom are captive screws and cannot be removed.

  2. PAVmaqoSkSONEdWP
    PAVmaqoSkSONEdWP
    cJuFK4B4gT5MdqFY

    • Pry out the back panel using the flat head side of the spudger.

    • Do not insert the spudger more than half an inch when separating the bottom and right side of the back panel.

  3. 6nBKjSecHLKFqmG4
    6nBKjSecHLKFqmG4
    RGPwW1rL1njaWSHS

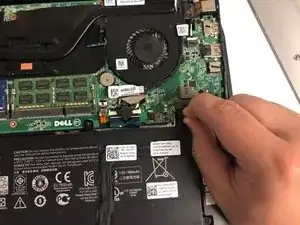

    • Disconnect the battery from the motherboard by pulling the black tab attached to the cable.

  4. XWK2RcBBIAViiwXo
    XWK2RcBBIAViiwXo
    nUus4DNGDF3TwJkU

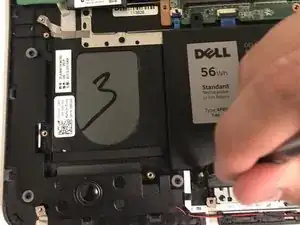

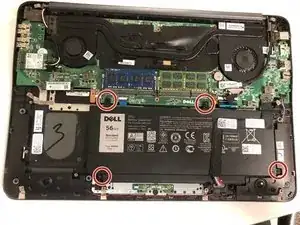

    • Remove the four 2.5x6mm screws using a Phillips #1 screwdriver.

Заключение

To reassemble your device, follow these instructions in reverse order.
